无锡固电ISC供应2SC4278三极管
| 价 格： | 4.50 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SC4278 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·Collector-Emitter Breakdown Voltage-
V(BR)CEO= 150V(Min)
·High Power Dissipation
·High Current Capacity
·Complement to Type 2SA1633
APPLICATIONS
·For audio and general purpose applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 150 | V |
VCEO | Collector-Emitter Voltage | 150 | V |
VEBO | Emitter-Base Voltage | 5 | V |
IC | Collector Current-Continuous | 10 | A |
PC | Collector Power Dissipation @ TC=25℃ | 100 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= 25mA; IB= 0 | 150 |
| V | |
V(BR)CBO | Collector-BaseBreakdownVoltage | IC= 0.1mA; IE= 0 | 150 |
|
| V |
V(BR)EBO | Emitter-BaseBreakdownVoltage | IE= 0.1mA; IC= 0 | 5 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 7A; IB= 0.7A |
|
| 1.0 | V |
ICBO | Collector Cutoff Current | VCB= 150V; IE= 0 |
|
| 5 | μA |
IEBO | Emitter Cutoff Current | VEB= 5V; IC= 0 |
|
| 5 | μA |
hFE | DC Current Gain | IC= 1A; VCE= 5V | 60 |
| 320 |
|
COB | Collector Output Capacitance | IE= 0; VCB= 10V; f= 1MHz |
| 200 |
| pF |
fT | Current-Gain—Bandwidth Product | IE= -1A; VCE= 5V |
| 20 |
| MHz |
u hFEClassifications
D | E | F |
60-120 | 100-200 | 160-320 |
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 谈增琴
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：
- QQ ：
无锡固电ISC 供应NPN 功率晶体管 2SD1654
信息内容：DESCRIPTION ·High Breakdown Voltage- : VCBO= 1500V (Min)·High Switching Speed·High ReliabilityAPPLICATIONS·Color TV horizontal deflection output applications.ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITV(BR)CEOCollector-Emitter Breakdown Voltage IC= 100mA; RBE=∞800 VV(BR)CBOCollector-Base Breakdown Voltage IC= 5mA; IE= 01500 VV(BR)EBOEmitter-Base Breakdown VoltageIE= 200mA; IC= 07 VVCE(sat)Collector-Emitter Saturation VoltageIC= 2.5A; IB= 0.8A 8.0VVBE(sat)Base-Emitter Saturation VoltageIC= 2.5A; IB= 0.8A 1.5VICBOCollector Cutoff CurrentVCB= 800V ; IE= 0 10μAIEBOEmitter Cutoff CurrentVEB= 5V; IC= 0 1.0mAhFEDC Current GainIC= 0.5A; VCE= 5V8 tfFall TimeIC= 3A, IB1= 0.8A; IB2= -1.6A 0.7μs

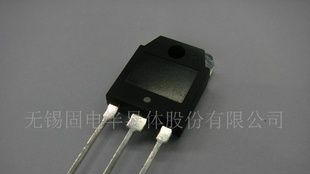

无锡固电ISC供应2SC4706三极管
