无锡固电ISC 供应2SB1344三极管
| 价 格： | 3.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SB1344 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | PNP型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -100V(Min)
·HighDC Current Gain-
: hFE=1000(Min)@ (VCE= -3V, IC= -2A)
·Complement to Type 2SD2025
APPLICATIONS
·Designed for power amplifier applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -100 | V |
VCEO | Collector-Emitter Voltage | -100 | V |
VEBO | Emitter-Base Voltage | -7 | V |
IC | Collector Current-Continuous | -8 | A |
ICM | Collector Current-Peak | -10 | A |
PC | Collector Power Dissipation @Ta=25℃ | 2 | W |
Collector Power Dissipation @TC=25℃ | 30 | ||
TJ | Junction Temperature | 150 | ℃ |
Tstg | Storage Temperature | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
Tj=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= -5mA; IB= 0 | -100 |
| V | |
V(BR)CBO | Collector-BaseBreakdownVoltage | IC= -50μA; IE= 0 | -100 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= -3A; IB= -6mA |
|
| -1.5 | V |
ICBO | Collector Cutoff Current | VCB= -100V; IE= 0 |
|
| -10 | μA |
IEBO | Emitter Cutoff Current | VEB= -5V; IC= 0 |
|
| -3 | mA |
hFE | DC Current Gain | IC= -2A; VCE= -3V | 1000 |
| 20000 |
|
COB | Output Capacitance | IE= 0; VCB= -10V; ftest= 1MHz |
| 90 |
| pF |
fT | Current-Gain—Bandwidth Product | IE= 0.5A; VCE= -5V; ftest= 10MHz |
| 12 |
| MHz |
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 谈增琴
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：
- QQ ：
无锡固电ISC供应2SC4278三极管
信息内容：DESCRIPTION ·Collector-Emitter Breakdown Voltage-V(BR)CEO= 150V(Min)·High Power Dissipation·High Current Capacity·Complement to Type 2SA1633 APPLICATIONS·For audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage 150VVCEOCollector-Emitter Voltage 150VVEBOEmitter-Base Voltage5VICCollector Current-Continuous10APCCollector Power Dissipation@ TC=25℃100WTJJunctionTemperature150℃TstgStorageTemperature Range-55~150℃ ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITV(BR)CEOCollector-Emitter Breakdown VoltageIC= 25mA; IB= 0150 VV(BR)CBOCollector-BaseBreakdownVoltage IC= 0.1mA; IE= 0150 VV(BR)EBOEmitter-BaseBreakdownVoltageIE= 0.1mA; IC= 05 VVCE(sat)Collector-Emitter Saturation VoltageIC= 7A; IB= 0.7A 1.0VICBOCollector Cutoff Curr...

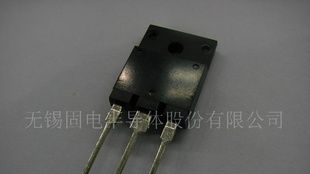

无锡固电ISC 供应NPN 功率晶体管 2SD1654
