整流二极管 1N4007
| 价 格： | 28.00 | |
| 是否提供加工定制： | 是 | |
| 产品类型： | 整流管 | |
| 是否进口： | 否 | |
| 品牌/商标： | PN | |
| 型号/规格： | 1N4007 1N4004 | |
| 材料： | 硅(Si) | |
| 主要参数： | IF=1.0A VB大于1000V | |
| 用途： | 标准整流二极管 |
| SYMBOL | 1N 4001 | 1N 4002 | 1N 4003 | 1N 4004 | 1N 4005 | 1N 4006 | 1N 4007 | UNITS |
峰值反向电压 MaximumCurrent PeakReverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | Volts |
反向有效电压 Maximum RMS Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | Volts |
直流阻断电压 Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | Volts |
正向平均整流电流TA=50℃ Maximum Average Forward Rectified current .375”(9.5mm) Lead Length | I(AV) | 1.0 | Amps | ||||||
正向峰值浪涌电流 Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC Method) TA=75℃ | IFSM | 30.0 | Amps | ||||||
1.0A直流电时瞬间电压降 Maximum Instantaneous Forward Voltageat1.0A | VF | 1.1 | Volts | ||||||
反向漏电压 Maximum DC Reverse Current TA=25℃ at Rated DC Blocking Voltage TA=125℃ | IR | 5.0 50.0 | uA | ||||||
典型热阻 Typical Thermal Resistance | RθJA RθJL | 55 25 | ℃/W | ||||||
典型结电容 Typical Junction Capacitance (NOTE) | CJ | 8 | Pf | ||||||
工作温度存储温度 OperatingANDStorageTemperature Range | TJ/TSTG | -65 to +150 | ℃ | ||||||
- 所属城市：湖北
- [联系时请说明来自维库仪器仪表网]
- 联系人： 周慧
- 电话：8607124767777
- 传真：8607124777999
- 手机：
- QQ ：
TIN-CAN 车用整流二极管
信息内容：大量供应TIN-CAN系列整流二极管。IF=35A/50A VB>400V产品。可根据客户要求，加工定制。 SYMBOLTIN-CAN UNITS3505351352354356峰值反向电压Maximum current Peak Reverse VoltageVRRM50100200400600Volts反向有效电流Maximum RMS VoltageVRMS3570140280420Volts直流阻断电压Maximum DC Blocking VoltageVDC50100200400600Volts正向平均整流电流TT=125℃Maximum Average Forward Rectified CurrentI(AV)35Amps正向峰值浪涌电流Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC Method)IFSM300Amps35A直流电时正向瞬间电压降Maximum Instantaneous Forward Voltage @35AVF1.0Volts反向漏电流Maximum DC Reverse Current @ TA=25℃at Rated DC Blocking Voltage @ TA=125℃IR5.0500.0uA典型结电容Typical Junction CapacitanceCJ300pF典型热阻Typical Thermal ResistanceRΘJA1.0℃/W工作温度存储温度Operating AND Storage Temperature RangeTJ/TSTG-55 to +150℃

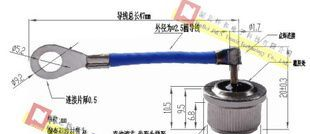

整流二极管 PRESS-FIT DIODE
信息内容：大量供应各种封装形式，各规格的大功率整流二极管。可根据客户需求加工定制。IF=50A VB>400V SYMBOLPF-28 UNITS5005501502504506峰值反向电压Maximum current Peak Reverse VoltageVRRM50100200400600Volts反向有效电流Maximum RMS VoltageVRMS3570140280420Volts直流阻断电压Maximum DC Blocking VoltageVDC50100200400600Volts正向平均整流电流TT=125℃Maximum Average Forward Rectified CurrentI(AV)50Amps正向峰值浪涌电流Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC Method)IFSM300Amps50A直流电时正向瞬间电压降Maximum Instantaneous Forward Voltage @50AVF1.1Volts反向漏电流Maximum DC Reverse Current @ TA=25℃at Rated DC Blocking Voltage @ TA=125℃IR5.0500.0uA典型结电容Typical Junction CapacitanceCJ300pF典型热阻Typical Thermal ResistanceRΘJA1.0℃/W工作温度存储温度Operating AND Storage Temperature RangeTJ/TSTG-55 to +150℃
