TIN-CAN 车用整流二极管
| 价 格： | 0.80 | |
| 是否提供加工定制： | 是 | |
| 产品类型： | 整流管 | |
| 是否进口： | 否 | |
| 品牌/商标： | PN | |
| 型号/规格： | TIN-CAN | |
| 材料： | 硅(Si) | |
| 主要参数： | IF=35A VB反向击穿电压大于400V | |
| 用途： | 整流二极管 |
大量供应TIN-CAN系列整流二极管。IF=35A/50A VB>400V产品。可根据客户要求，加工定制。
| SYMBOL | TIN-CAN |
UNITS | ||||
3505 | 351 | 352 | 354 | 356 | |||
峰值反向电压 Maximum current Peak Reverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | Volts |
反向有效电流 Maximum RMS Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | Volts |
直流阻断电压 Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | Volts |
正向平均整流电流TT=125℃ Maximum Average Forward Rectified Current | I(AV) | 35 | Amps | ||||
正向峰值浪涌电流 Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC Method) | IFSM | 300 | Amps | ||||
35A直流电时正向瞬间电压降 Maximum Instantaneous Forward Voltage @35A | VF | 1.0 | Volts | ||||
反向漏电流 Maximum DC Reverse Current @ TA=25℃ at Rated DC Blocking Voltage @ TA=125℃ | IR | 5.0 500.0 | uA | ||||
典型结电容 Typical Junction Capacitance | CJ | 300 | pF | ||||
典型热阻 Typical Thermal Resistance | RΘJA | 1.0 | ℃/W | ||||
工作温度存储温度 Operating AND Storage Temperature Range | TJ/TSTG | -55 to +150 | ℃ | ||||
- 所属城市：湖北
- [联系时请说明来自维库仪器仪表网]
- 联系人： 周慧
- 电话：8607124767777
- 传真：8607124777999
- 手机：
- QQ ：
整流二极管 PRESS-FIT DIODE
信息内容：大量供应各种封装形式，各规格的大功率整流二极管。可根据客户需求加工定制。IF=50A VB>400V SYMBOLPF-28 UNITS5005501502504506峰值反向电压Maximum current Peak Reverse VoltageVRRM50100200400600Volts反向有效电流Maximum RMS VoltageVRMS3570140280420Volts直流阻断电压Maximum DC Blocking VoltageVDC50100200400600Volts正向平均整流电流TT=125℃Maximum Average Forward Rectified CurrentI(AV)50Amps正向峰值浪涌电流Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC Method)IFSM300Amps50A直流电时正向瞬间电压降Maximum Instantaneous Forward Voltage @50AVF1.1Volts反向漏电流Maximum DC Reverse Current @ TA=25℃at Rated DC Blocking Voltage @ TA=125℃IR5.0500.0uA典型结电容Typical Junction CapacitanceCJ300pF典型热阻Typical Thermal ResistanceRΘJA1.0℃/W工作温度存储温度Operating AND Storage Temperature RangeTJ/TSTG-55 to +150℃

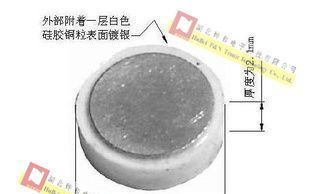

CELL 整流二极管
信息内容：大量供应铜CELL 25A/35A/50A/70A 规格 STD 、TVS 整流二极管。 SYMBOLSC UNITS50A50B50D50G50J峰值反向电压Maximum current Peak Reverse VoltageVRRM50100200400600Volts反向有效电流Maximum RMS VoltageVRMS3570140280420Volts直流阻断电压Maximum DC Blocking VoltageVDC50100200400600Volts正向平均整流电流TT=125℃Maximum Average Forward Rectified CurrentI(AV)50Amps正向峰值浪涌电流Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC Method)IFSM500Amps50A直流电时正向瞬间电压降Maximum Instantaneous Forward Voltage @50AVF1.1Volts反向漏电流Maximum DC Reverse Current @ TA=25℃at Rated DC Blocking Voltage @ TA=125℃IR5.0500.0uA典型结电容Typical Junction CapacitanceCJ350pF典型热阻Typical Thermal ResistanceRΘJA1.0℃/W工作温度存储温度Operating AND Storage Temperature RangeTJ/TSTG-55 to +150℃
