供应干簧继电器MD-5 MD-12

价格：		面议
型号/规格：		MD-5/MD-12
品牌/商标：		SUNHOLD

详细介绍
企业详情

MD SIP Reed Relay

■FEATURES 特点 ·1 Form A Contact 　触点形式为一组常开 ·SIP Terminal ·Application for Fax Modem, Telecommunication 　Security Alarm System 　　　　　　应用于传真解调器，通讯系统，防盗报警系统等 ·UL File No. E147052	dzsc/18/5967/18596736.jpg

■COIL RATING(at 20℃) 线圈参数

Nominal Voltage (VDC) 额定电压	Coil Resistance ( Ω ±10%) 线圈电阻	Nominal Current (mA) 耗电流	Pick-Up Voltage (VDC) 吸合电压	Drop-Out Voltage (VDC) 释放电压	Maximum Allowable Voltage (VDC) 过载电压	Power (mW) Consumption 线圈功率
5	500	10.0	3.75	0.6	15	50
12	1000	12.0	9.0	1.44	30	144
24	2000	12.0	18.0	2.88	40	288

■ORDERING INFORMATION　订货编号

dzsc/18/5967/18596736.jpg

Coil Voltage线圈电压	Option 选项
See Coil Rating 参见"线圈参数"表	Nil:Standard 标准型　 D:With Diode 加二极管

■SPECIFICATIONS 规格表

Contact Arrangement 触点形式		1Form A
Contact Material 触点材质		Ru/Rh
Contact Resistance 触点电阻		Max.150m Ω (initial)
Contact Rating (at Resistive Load) 触点负载 (阻性负载 )	Max.Switching Voltage开关电压	100VDC
	Max.Switching Current开关电流	0.5A
	Max.Switching Power 开关功率	10W(DC)/10VA(AC)
	Max.Carrying Current过载电流	1A
Dielectric Strength 介质耐压 Between Coil ＆ Contact 线圈与触点之间 Between Contacts 触点组之间		1400VDC(1 minute) 250VDC(1 minute)
Operate Time 动作时间		Max.1.0m Sec.
Release Time 释放时间		Max.0.5m Sec.
Ambient Temperature 环境温度		-40 ℃ ~+85 ℃
Insulation Resistance 绝缘电阻		Min.100M Ω at 500VDC
Vibration Resistance 振动		1.5mm D.A.10-55HZ
Shock 冲击	Functional 动作极限	20G
	Destruction 破坏极限	100G
Mechanical Life 机械寿命		1×10⁸ operations (at no load)
Electrical Life 电气寿命		1×10⁶ operations (at rated load)
Weight 重量		Approx.1.5g

dzsc/18/5967/18596736.jpg

深圳市福田区广辉电经营部

公司信息未核实

所属城市：广东深圳
[联系时请说明来自维库仪器仪表网]
联系人： 陈树辉
电话：0755-82534577/13076512089
传真：0755-82534577
手机：13686868407
QQ ：

公司相关产品

供应汽车继电器RK-12 RK-24

信息内容：

汽车继电器RK-12 RK-24 1. Contact Data Contact Form 1 Form A Contact Material Silver Alloy Contact Ratings 30A 14VDC ( resistive )15A 28VDC ( resistive ) Max Switching Voltage 14VDC Max Switching Current 30A Max Switching Power 420W Contact Resistance 100m ohm Max. at 6VDC 1A Life Expectancy Electrical 100,000 Operations (at30 Operations / minute) Machanical 10,000,000 Operations 2. General Data Insulation Resistance 100M Min at 500VDC Dielectric Strength Between Open Contacts 500VAC (for one minute) Between Contacts and coil 500VAC (for one minute) Operate Time 15ms Release Time 18ms Temperature Range -40°C to+85°C Shock Resistance Operating extremes 10G Damage limits 100G Vibration Resistance 10-55Hz, 1.5mm Max. switching frequency Mechanical 18,000 operations per hour Electrical 1,800 operations per hour Humidity 40-85% Weight Approx 28g 3. Coil Data ...

详细内容>>

供应RA-A12S/JQX-15F单组常开常闭继电器12V/30A

信息内容：

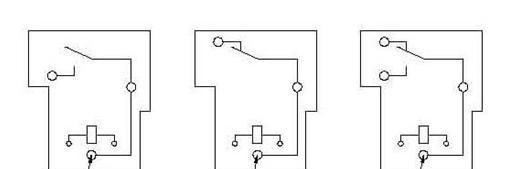

►FEATURES High switching 40A ( NO-Contact ) SPDT & SPST configurations PCB mounting, Plug-In type dzsc/18/5967/18596738.jpg Size (L x W x H) 32.2 x 27.2 x 20.2mm ►CONTACT DATA Contact Form 1A, 1B, 1C Contact Ratings Standard High Capacity NO : 30A 240VAC 30A 28VDCNC : 20A 240VAC 20A 28VDC NO : 40A 240VAC 40A 28VDCNC : 30A 240VAC 30A 28VDC Contact Material Ag Alloy Max. Switching Voltage 240VAC/28VDC Max. Switching Current 30A 40A Max. Switching Power 30A 40A Contact Resistance 100mΩMax., at 6VDC 1A Life Expectancy Electrical 100,000 Operations (at 30 ops a minute) Mechanical 10,000,000 Operations ►OPERATION CONDITION Insulation Resistance 100MΩ min (at 500VDC) Dielectric Strength Between open Contacts 1,500VAC (For one minute) Between coil & Contacts 1,500VAC / 2,500VAC (For ...
