供应 汽车继电器RK-12 RK-24
| 价 格： | 面议 | |
| 型号/规格： | RK-12/RK-24 | |
| 品牌/商标： | HANDOUK |
1. Contact Data
| Contact Form | 1 Form A |
| Contact Material | Silver Alloy |
| Contact Ratings | 30A 14VDC ( resistive ) 15A 28VDC ( resistive ) |
| Max Switching Voltage | 14VDC |
| Max Switching Current | 30A |
| Max Switching Power | 420W |
| Contact Resistance | 100m ohm Max. at 6VDC 1A |
| Life Expectancy Electrical | 100,000 Operations (at30 Operations / minute) |
| Machanical | 10,000,000 Operations |
2. General Data
| Insulation Resistance | 100M Min at 500VDC | |
| Dielectric Strength Between Open Contacts | 500VAC (for one minute) | |
| Between Contacts and coil | 500VAC (for one minute) | |
| Operate Time | 15ms | |
| Release Time | 18ms | |
| Temperature Range | -40°C to+85°C | |
| Shock Resistance | Operating extremes | 10G |
| Damage limits | 100G | |
| Vibration Resistance | 10-55Hz, 1.5mm | |
| Max. switching frequency | Mechanical | 18,000 operations per hour |
| Electrical | 1,800 operations per hour | |
| Humidity | 40-85% | |
| Weight | Approx 28g | |
3. Coil Data
| Nominal Voltage (VDC) |
Coil Resistance at 20±10%(ohm) |
Rated coil Current mA |
Max Operate Voltage VDC |
Min Release Voltage VDC |
Max Applicable Voltage VDC(23°C) |
| 6 | 25 | 240 | 3.9 | 0.3 | 10.2 |
| 12 | 100 | 120 | 7.8 | 0.6 | 20.4 |
| 24 | 400 | 60 | 15.6 | 1.2 | 40.8 |
4. Ordering Code
dzsc/18/5967/18596737.jpg
5. Overall And Mounting Dimensions
dzsc/18/5967/18596737.jpg
dzsc/18/5967/18596737.jpg
5. USEFUL CURVE
dzsc/18/5967/18596737.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：
供应RA-A12S/JQX-15F单组常开常闭继电器12V/30A
信息内容：►FEATURES High switching 40A ( NO-Contact ) SPDT & SPST configurations PCB mounting, Plug-In type dzsc/18/5967/18596738.jpg Size (L x W x H) 32.2 x 27.2 x 20.2mm ►CONTACT DATA Contact Form 1A, 1B, 1C Contact Ratings Standard High Capacity NO : 30A 240VAC 30A 28VDCNC : 20A 240VAC 20A 28VDC NO : 40A 240VAC 40A 28VDCNC : 30A 240VAC 30A 28VDC Contact Material Ag Alloy Max. Switching Voltage 240VAC/28VDC Max. Switching Current 30A 40A Max. Switching Power 30A 40A Contact Resistance 100mΩMax., at 6VDC 1A Life Expectancy Electrical 100,000 Operations (at 30 ops a minute) Mechanical 10,000,000 Operations ►OPERATION CONDITION Insulation Resistance 100MΩ min (at 500VDC) Dielectric Strength Between open Contacts 1,500VAC (For one minute) Between coil & Contacts 1,500VAC / 2,500VAC (For ...
供应固态继电器SG-2D-480A5ZS-NG

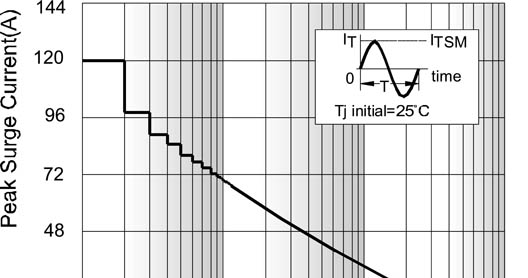

信息内容：dzsc/18/5967/18596739.gif dzsc/18/5967/18596739.gif dzsc/18/5967/18596739.jpg SG Relay · Input: DC control · Double SCR AC output or TRIAC AC output· 4000V dielectric strength· Printed circuit board mount· Environmental friendly product (RoHS compliant) INPUT (TA = 25 ∩) Input voltage D 3 to 32vDC 1D 3 to 15VDC 2D 15 to 32VDC Must operate voltage D 3VDC 1D 3VDC 2D 15VDC Must release voltage 1.0VDC Max. Input current D 25mA 1D 40mA 2D 20mA OUTPUT (TA = 25∩ ) Load voltage range 48 to 280VAC (240VAC rated voltage) 48 to 440VAC (380VAC rated voltage) 48 to 530VAC (480VAC rated voltage) Load current range 0.1 to 5A Max.surge current (10ms) Triac output: 120Apk SCR output: 250Ap...
