供应RA-A12S/JQX-15F单组常开常闭继电器12V/30A
| 价 格： | 面议 | |
| 型号/规格： | RA-12S,RA-24S,RA-A12S,RA-A24S | |
| 品牌/商标： | handouk |
►FEATURES
High switching 40A ( NO-Contact )
SPDT & SPST configurations
PCB mounting, Plug-In type
dzsc/18/5967/18596738.jpg
Size (L x W x H)
32.2 x 27.2 x 20.2mm
►CONTACT DATA
| Contact Form | 1A, 1B, 1C | ||
| Contact Ratings | Standard | High Capacity | |
|
NO : 30A 240VAC 30A 28VDC NC : 20A 240VAC 20A 28VDC |
NO : 40A 240VAC 40A 28VDC NC : 30A 240VAC 30A 28VDC | ||
| Contact Material | Ag Alloy | ||
| Max. Switching Voltage | 240VAC/28VDC | ||
| Max. Switching Current | 30A | 40A | |
| Max. Switching Power | 30A | 40A | |
| Contact Resistance | 100mΩMax., at 6VDC 1A | ||
| Life Expectancy | Electrical | 100,000 Operations (at 30 ops a minute) | |
| Mechanical | 10,000,000 Operations | ||
| Insulation Resistance | 100MΩ min (at 500VDC) | |
| Dielectric Strength | Between open Contacts | 1,500VAC (For one minute) |
| Between coil & Contacts | 1,500VAC / 2,500VAC (For one minute) | |
| Operate time | 15ms | |
| Release Time | 10ms | |
| Shock resistance | Operating Extremes | 10G |
| Damage Limits | 20G | |
| Vibration resistance | 10~55Hz Double amplitude | |
| Humidity | 40~85% | |
| Temperature Range | -40 ~ 70℃(-40~158°F) | |
| Weight | Approx 27g | |
| Safety Standard | UL | E197546 |
| TUV | R50056430 | |
►COIL PARAMETER
| Nominal Voltage (VDC) | Coil Resistance at 20 C (Ω) 0.93W | Max Operate Voltage | Min. Release Voltage | Max. Applicable Voltage |
| 3 | 9.7 | 2.25 | 0.3 | 3.9 |
| 5 | 26.9 | 3.75 | 0.5 | 6.5 |
| 6 | 38.8 | 4.5 | 0.6 | 7.8 |
| 9 | 87.1 | 6.75 | 0.9 | 11.7 |
| 12 | 154.9 | 9 | 1.2 | 15.6 |
| 24 | 619.4 | 18 | 2.4 | 31.2 |
| 48 | 2477.5 | 36 | 4.8 | 62.4 |
►ORDERING INFORMATION
dzsc/18/5967/18596738.jpg
►DIMENSIONS (Unit: mm) dzsc/18/5967/18596738.jpg dzsc/18/5967/18596738.jpg- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：
供应固态继电器SG-2D-480A5ZS-NG
信息内容：dzsc/18/5967/18596739.gif dzsc/18/5967/18596739.gif dzsc/18/5967/18596739.jpg SG Relay · Input: DC control · Double SCR AC output or TRIAC AC output· 4000V dielectric strength· Printed circuit board mount· Environmental friendly product (RoHS compliant) INPUT (TA = 25 ∩) Input voltage D 3 to 32vDC 1D 3 to 15VDC 2D 15 to 32VDC Must operate voltage D 3VDC 1D 3VDC 2D 15VDC Must release voltage 1.0VDC Max. Input current D 25mA 1D 40mA 2D 20mA OUTPUT (TA = 25∩ ) Load voltage range 48 to 280VAC (240VAC rated voltage) 48 to 440VAC (380VAC rated voltage) 48 to 530VAC (480VAC rated voltage) Load current range 0.1 to 5A Max.surge current (10ms) Triac output: 120Apk SCR output: 250Ap...
供应汽车继电器RDM-2C-12

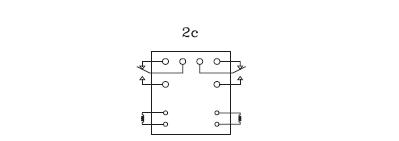

信息内容：特性： ●20A触点切换能力 ●单个继电器和双继电器两种可供选择 ●2套独立的继电器机构可任意连接 ●特别适合用于控制自动升降窗、中央门锁、座位调整和雨刷● 外形尺寸:18.2x17.4x13.8mm Small size, light weight. Low coil power consumption. Switching capacity up 20A. Suitable for automobile, automation system, electronic equipment, instrument, meter, telecommunication facilities and remote control facilities LxWxH(mm) 18.2x17.4x13.8 Arrangement 2c Contact Current 20A Contact Rating 14VDC 20A Coil VoLtage DC 12VDC AC Coil Power DC 0.8W L:0.6W AC Insulation Resistance DC500V 100MΩ Dielectric Strength 500VAC between coil & contact Life Mechanically 1x107 Electriaclly 2x105 dzsc/18/5967/18596740.jpg dzsc/18/5967/18596740.jpg dzsc/18/5967/18596740.jpg
