供应LAH 100-P霍尔效应的闭环电流传感器
| 价 格： | 面议 | |
| 型号/规格： | LAH 100-P/LAH100-P | |
| 品牌/商标： | LEM |
产品说明：
LAH 100-P是应用霍尔效应的闭环电流传感器，能在电隔离条件下测量直流、交流，脉冲以及各种不规则波形的电流。
匝数比 Kn 1:2000
dzsc/18/5967/18596735.jpg
dzsc/18/5967/18596735.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：
供应干簧继电器MD-5 MD-12

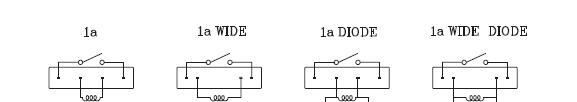

信息内容：MD SIP Reed Relay ■FEATURES 特点·1 Form A Contact 触点形式为一组常开·SIP Terminal ·Application for Fax Modem, Telecommunication Security Alarm System 应用于传真解调器，通讯系统，防盗报警系统等·UL File No. E147052 dzsc/18/5967/18596736.jpg ■COIL RATING(at 20℃) 线圈参数 Nominal Voltage (VDC)额定电压 Coil Resistance( Ω ±10%)线圈电阻 Nominal Current(mA)耗电流 Pick-Up Voltage (VDC)吸合电压 Drop-Out Voltage(VDC)释放电压 Maximum Allowable Voltage (VDC)过载电压 Power (mW) Consumption 线圈功率 5 500 10.0 3.75 0.6 15 50 12 1000 12.0 9.0 1.44 30 144 24 2000 12.0 18.0 2.88 40 288 ■ORDERING INFORMATION 订货编号 dzsc/18/5967/18596736.jpg Coil Voltage线圈电压 Option 选项 See Coil Rating参见"线圈参数"表 Nil:Standard 标准型 D:With...
供应 汽车继电器RK-12 RK-24
信息内容：汽车继电器RK-12 RK-24 1. Contact Data Contact Form 1 Form A Contact Material Silver Alloy Contact Ratings 30A 14VDC ( resistive )15A 28VDC ( resistive ) Max Switching Voltage 14VDC Max Switching Current 30A Max Switching Power 420W Contact Resistance 100m ohm Max. at 6VDC 1A Life Expectancy Electrical 100,000 Operations (at30 Operations / minute) Machanical 10,000,000 Operations 2. General Data Insulation Resistance 100M Min at 500VDC Dielectric Strength Between Open Contacts 500VAC (for one minute) Between Contacts and coil 500VAC (for one minute) Operate Time 15ms Release Time 18ms Temperature Range -40°C to+85°C Shock Resistance Operating extremes 10G Damage limits 100G Vibration Resistance 10-55Hz, 1.5mm Max. switching frequency Mechanical 18,000 operations per hour Electrical 1,800 operations per hour Humidity 40-85% Weight Approx 28g 3. Coil Data ...
