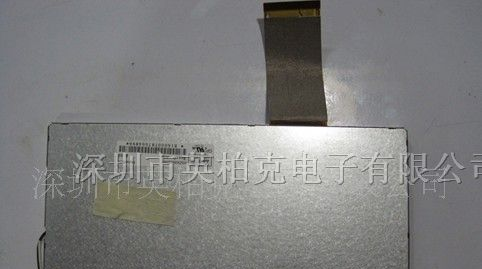

供应中华液晶屏CLAB070JA05CW
| 价 格： | 面议 | |
| 型号/规格： | CLAB070JA05CW | |
| 品牌/商标： | 中华映管 |
CLAB070JA05CW is 7.0" color TFT-LCD (Thin Film Transistor Liquid Crystal Display)
OLB module (finish outer lead bonding) composed of LCD panel and driver ICs (the backlight
is not included in this OLB module).
The 7.0" (17.67cm) screen produces 480(*3)X234 WQVGA resolution image. By applying
R.G.B. input signal, full color images are displayed.
General specifications are summarized in the following table:
ITEM ECIFICATION
Display Area (mm) 154.08 (H) × 86.58 (V)
Number of Pixels 480(H) × 3(RGB)× 234(V)
Display Mode Normally white,TN
Number of color Full color
Viewing Direction 6 o'clock
Panel Transmittance (%) 8.3 (TYP.)
Power Consumption(W) Outline Dimension(mm) 165.2(W) × 95.5(H) × 1.7(D) (exclude FPC)
Surface Treatment Anti-Glare
