翰彩液晶屏HSD080IDW1-A
| 价 格： | 面议 | |
| 型号/规格： | 翰彩HSD080IDW1-A | |
| 品牌/商标： | 翰彩8寸液晶屏 |
1.0 GENERAL DESCRIPTION
1.1 Introduction
HannStar Display model HSD080IDW1-B is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching
device. This model is composed of a TFT LCD panel, a driving circuit and a back
light system. This TFT LCD has a 8.0 (16:9) inch diagonally measured active display
area with WVGA (800 horizontal by 480 vertical pixel) resolution.
1.2 Features
8 (16:9 diagonal) inch configuration
6 bits + FRC driver with 1channel TTL interface
RoHS and Halogen-Free Compliance
1.3 Applications
Digital Photo frame
Portable DVD
Multimedia applications and Others AV system
1.4 General information
Item Specification Unit
Outline Dimension 192.8 x 116.9 x 6.4 (Typ.) mm
Display area 176.64(H) x 99.36(V) mm
Number of Pixel 800 RGB (H) x 480(V) pixels
Pixel pitch 0.2208(H) x 0.2070(V) mm
Pixel arrangement RGB Vertical stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating (3H)
Weight 240(Typ.) g
Back-light Side-light type
Power
Consumption B/L System 2.16 (Max.) W
1.5 Mechanical Information
Item Min. Typ. Max. Unit
Horizontal(H) 192.5 192.8 193.1 mm
Vertical(V) 116.6 Module 116.9 117.2 mm
Size
Depth(D) 6.1 6.4 6.7 mm
Weight (Without inverter) --- 240 --- g
- 所属城市：广东 韶关
- [联系时请说明来自维库仪器仪表网]
- 联系人： 罗小姐
- 电话：0755-27821716
- 传真：-
- 手机：18926752642
- QQ ：
翰彩液晶屏HSD070IDW1-A
信息内容：HannStar Display model HSD070IDW1-A is a color active matrix thin film transistor(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switchingdevice. This model is composed of a TFT LCD panel, a driving circuit and a backlight system. This TFT LCD has a 7.0 (16:9) inch diagonally measured activedisplay area with 2400 x 480 dot (800 horizontal by 480 vertical pixel) resolution. 1.2 Features■ 7 (16:9 diagonal) inch configuration■ 6 bits + FRC driver with 1channel TTL interface■ RoHS Compliance1.3 Applications■ Mobile NB■ Digital Photo frame■ Multimedia applications and Others AV system1.4 General informationItem Specification UnitOutline Dimension 165.0 x 104.0 x 5.1 (Typ.) mmDisplay area 153.6(H) x 86.64(V) mmNumber of Pixel 800 RGB(H) x 480(V) pixelsPixel pitch 0.192(H) x 0.1805(V) mmPixel arrangement RGB Vertical stripeDisplay mode Normally whiteSurface treatment Antiglare, Hard-Coating(3H) with EWV filmWeight (130) (Typ.) gBack-light Single LED (Side-Li...

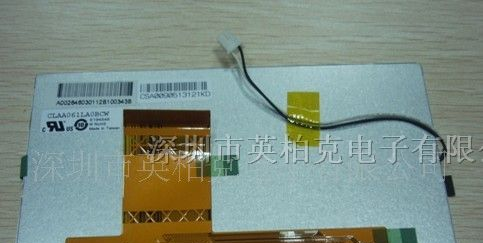

供应中华液晶屏CLAA062LA0BCW
