| 产品型号 | 灯具规格 | 输入电压 | 功率 | LED数量 |
| KTR5050RGB-60 | 12*1000mm | 12V | 14.4W | 60 |
| 光源颜色 | 护等级 | |||
| RGB | NE/IP67 | |||
一．特点：Features:
1、采用公司的RGB灯珠设计，全透明封装，外观精美；
The D te RGB lighting source is uniquely designed by our company, full transparent packed, has an attractive outward appearance.
2、传统的灯珠发光面局限问题，立体发光设计，使光色更加均匀；
The emitting area of new designed products is wider than the traditional design does. It adopts omnibearing and stereoscopic emitting design,which makes the Luminescence more uniform .
3、发光颜色：红/绿/蓝/黄/白/暖白和RGB等多种颜色可供选择
Variety choices of emitting color: red/green/blue/yellow/white/warm white and RGB.
4、柔软灵活，方便于旮旯角装饰，如圆形/不规则型设计的装饰
With better Flexibility, bendable as needed, Particularly suitable for blind Angle decoration, for example, decorated by round and irregular design .
5、灯带背面贴3M双面胶，套管系列配锁扣配件，安装方便LED产品寿命长，且能
3M two-side glue is utilized at the reverse side, drivepipe series is mateched with hasp spare and parts, which is convenient for installation , moreover brings a longer life span and low power power consumption.
二、产品参数 Technical Parameters:
产品型号
颜色
数量
工作电压
工作电流
波长/色温
光通量
包装
Part Number
Color
LED Qty
Working Voltage
Working Current
Wave/Color temperature
Lumius Flux
Packing
KT-5050RGB-60P
Red
60
DC12V
540mA /270mA
625-630nm
240-270
1000x10 /12mm
Blue
465-470nm
Green
515-520nm
- 2 -
1、每三个LED可以沿着上面切线任意截断，不损坏其它部分。
Each 3 LEDs are in one unit, along the cutting line, can be cut it into any pointed length,caused damage to others parts.
2、由印制电路板组成，背面带3M双面胶，用于粘贴。
It is composed of printed circuit board, the reverse side brings 3 M two-side glue,suitable for paste.
3、体积小,有多种颜色可供客户选择:红光，黄光，绿光，蓝光，白光，RGB.
all in size, color options: red, yellow , green ,blue ,white and RGB.

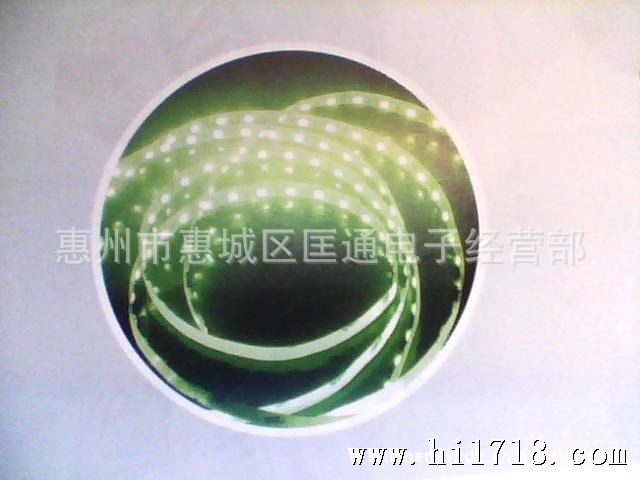

4、每卷的标准长度：5米
Standard length of one roll :5 Meters
5、每卷灯的数量为：300LED软光条
Quantity of LED in one roll :300 LEDs
6、工作电压：直流电压DC：12V
Working Voltage : DC 12V
7、LED规格：采用亮5050贴片LED RGB
LED standard: Super-bright 5050 RGB D LED used
8、水方式：IP64，IP65，IP66，IP67，IP68
Water-proof standard: IP64, IP65, IP66, IP67, IP68
9、发光角度150度
Viewing Angle: 150°
10、工作电流： <4.5A
Working Current: <4.5A
11、功耗： 60灯<72W
Power consumption : 60 LED <72W
12、工作环境温度：-40~50℃
Working temperature: -40~50℃
13、储存条件：-50~60℃
Storage condition: -50~60℃
- 3 -
三、用途：Application
1、城市轮廓亮化（楼宇、广告墙、招牌、圣诞景观装饰）
City outline lighting (buildings, advertising walls, LED boards, Christmas landscape decoration)
2、不规则设计体的装饰（酒店/ KTV等场所的多边形墙体、水滴型天花凹槽设计..）
Irregular objectives decoration (hotels and KTV’s and polygon walls design and also Water droplets groove te design)
3、家居暗槽镶边（门框、吧台、酒柜、衣柜、电视柜…）
Household veneered (door frame, Bar counter, wine cabinet, closet, TV cabinet)
4、汽车美容（车体、车底…）
Car Beauty and Decorating (car body and bottom and etc.)
四、使用及注意：Usage and tice
1、本产品为恒流低压12V~24V，请接12V/24低压或购置变压开关电源.
Our product adopts constant current and low voltage 12V-24V, please connect 12V/24V low voltage or purchase variable pressure switch power.
2、安装时，撕开产品背面双面胶粘于使用地点即可；
For installation,please tear out 3M two- side glue and paste on using place.
3、RGB全彩系列，请购置配套RGB控制器便于遥控色彩（可设定单色/全白色或者遥控渐变，跳变并改变颜色变化速度…）
For RGB full color series, please purchase matched RGB controller to control the different colors (you can set mochromatic, white or gradient color, you can also change the color’s hopping speed)
4、本品常规使用时，建议并联；当串联使用时，连接长度请勿过5米，以免电压不足导致亮度不够；
When it is routine used, we advise you to do parallel connection; but used in series, please tice dot exceed 5 meters as the connecting length, in order to avoid the under voltage which leads to brightness is t eugh.
五、包装与发货时间：Packing and Delivery Time:
1、标准包装为每卷5米；
Standard packing is 5 meters per roll
2、常规产品常年有库存，如遇工厂出货短缺，可在3-5天内出货
Ordinary products are in stock through the year, if the product is out of stock , the delivery time is within 3-5 days.
- 4 -
3、如有色温要求且有批量需要时，请下定单生产以色温范围一致.
If you have special color and temperature requirements and your goods need to be under quantity production, we will customize the goods for you to ensure the color and temperature in a consistent range.
六、安装说明与注意事项：Installation instruction and tice:
1、LED灯条大部分为低压，所以切记在安装的时候，给灯条匹配好相应的变压器，以免冲击损坏灯条；
Most of the LED strip lights are used in low voltage, so please make sure a suitable transformer is used, in order to avoid damaging the strip.
2、在安装LED柔性灯条时，尽量避免LED光源及以免位于灯条的弯曲处，以免光源和电阻脱焊，导致部分光源不能点亮；
When installation, be sure to leave the bending place of LED lighting and resistance, to avoid LED lighting and resistance coming off thus leads to an exceptional lighting.
3、在匹配变压器时，应了解清楚线路板所能承受的电流，再考虑如何串并联综合安装。
When matching the transformer, please firstly kw about the current limits of the circuit board can bear, and then consider how to install comprehensively in series or in parallel.
七、售后服务：After- sales Service
1、产品如有质量问题，请联系我司，并在收货七天内退回处理，过期后当自行解决办理，如确因质量问题，我司无条件退货，并承担相关运费，退回货款。
Please dot hesitate to contact us for any quality issues, only 7 days is available to return the goods, if expiring this time , please kindly solve it yourselves. For the quality problem indeed, we guarantee to return your full payment unconditionally and bear the freight fees.
2、本公司LED灯条产品质保一年
One year warranty is provided for our LED Strip light
