原装韩国 EWI 帕蛇系列 PSX-8 舞台连接线
8通道XLR舞蛇，50英尺，XLR铁盒舞台线，EWI 3FB-GDP和3-GDP接头
Key Featur:
All XLR cord ends and panel jacks
Heavy duty construction
Excellent noise rejection
Mh Grip style Strain Relief on Stagebox and Fantail
Applications:
Multi-signal transfer from the stage or sound booth to the mix console.
As a sub-snake to make a cross stage run to the main snake.
Technical Dcription:
The EWI PSX-8 seri snake could be clified as a sub-snake or a drop-snake because of the 8 channel construction since the are commonly used as a cross stage run snake tied into the main snake avoiding a ms of individual mic cabl across the stage.
Both the fantail and stage box are all XLR. This is strictly a send snake, as there are no return lin.

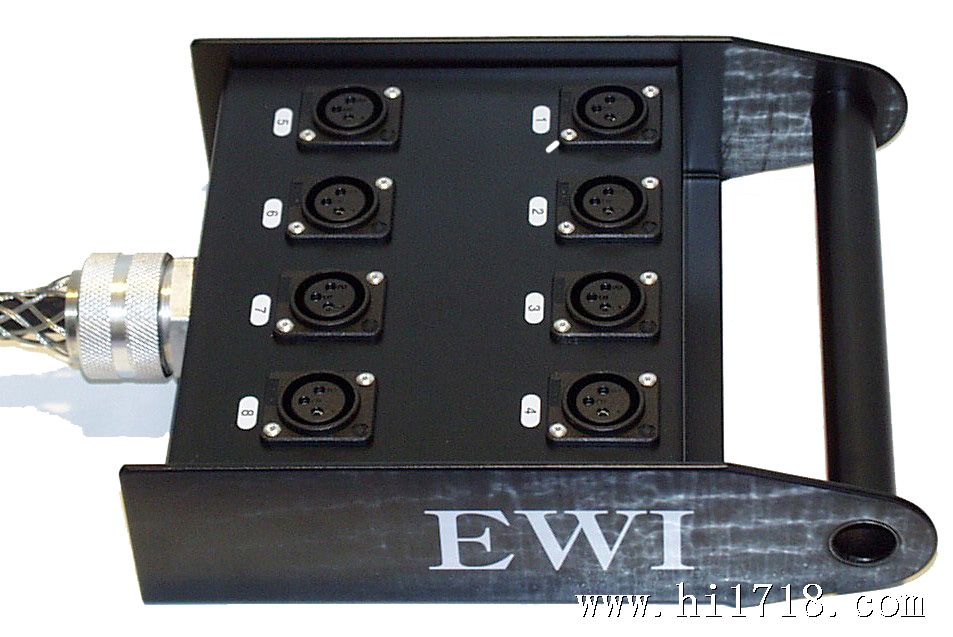

The stage box is very heavy duty and well labeled. The fantail is also heavy duty, color coded to groups and very well labeled. The main trunk is constructed with EWI SMC cable which is 8 individual shielded pairs, 22 ga., high copper purity conductors with double aluminum foil shield and trace wire, which is heavy duty, and very flexible.
Strain relief at the stage box and fantail is provided with mh grip style hanger at the fantail, and rubber comprsion aluminum cable clamp at the stagebox.

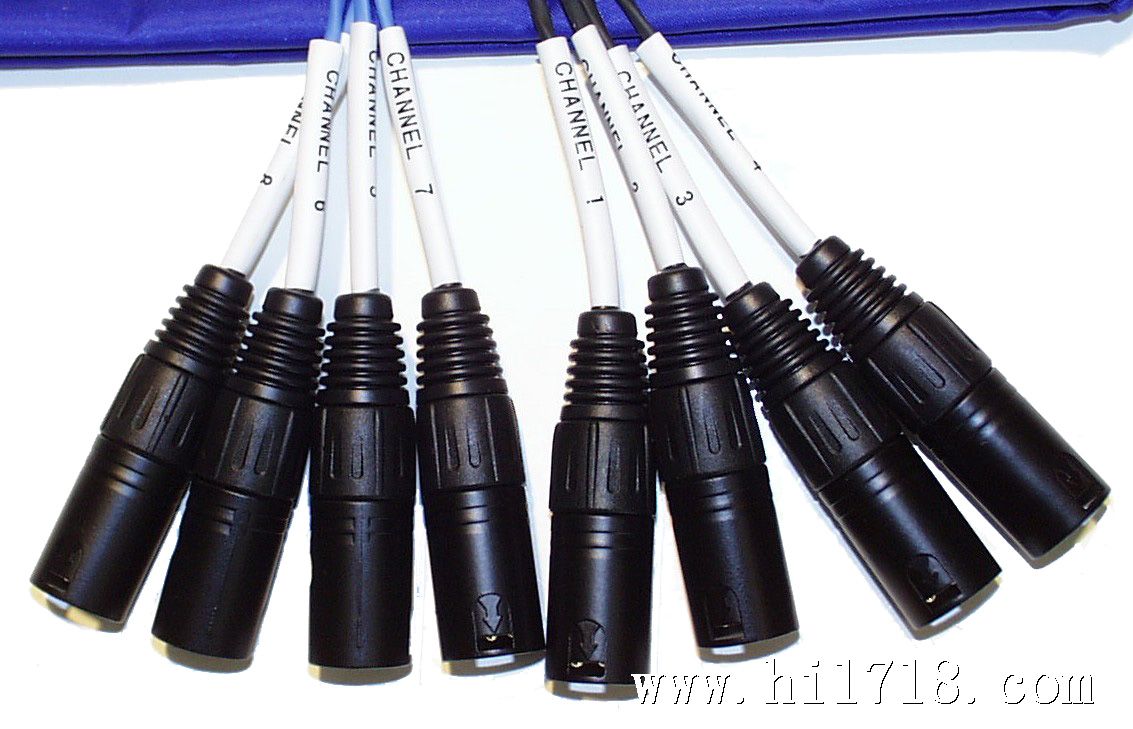

The panel jacks are the buttonls "spring loaded" style with composite (non metallic) bodi. The fantail is constructed with EWI 3-GDP black shell with gold contact point MXLR connectors.
This is a quality built snake suitable for profsional applications. It even com with a nifty blue bag to protect the fantail when not in use.
Genuine Liechtenstein Neutrik® XLR connectors on the stage box and fantail are now available on select lengths. The Neutrik equipped snak feature Neutrik® "XX" seri cord ends and Neutrik® NCP seri panel jacks on the stage box.

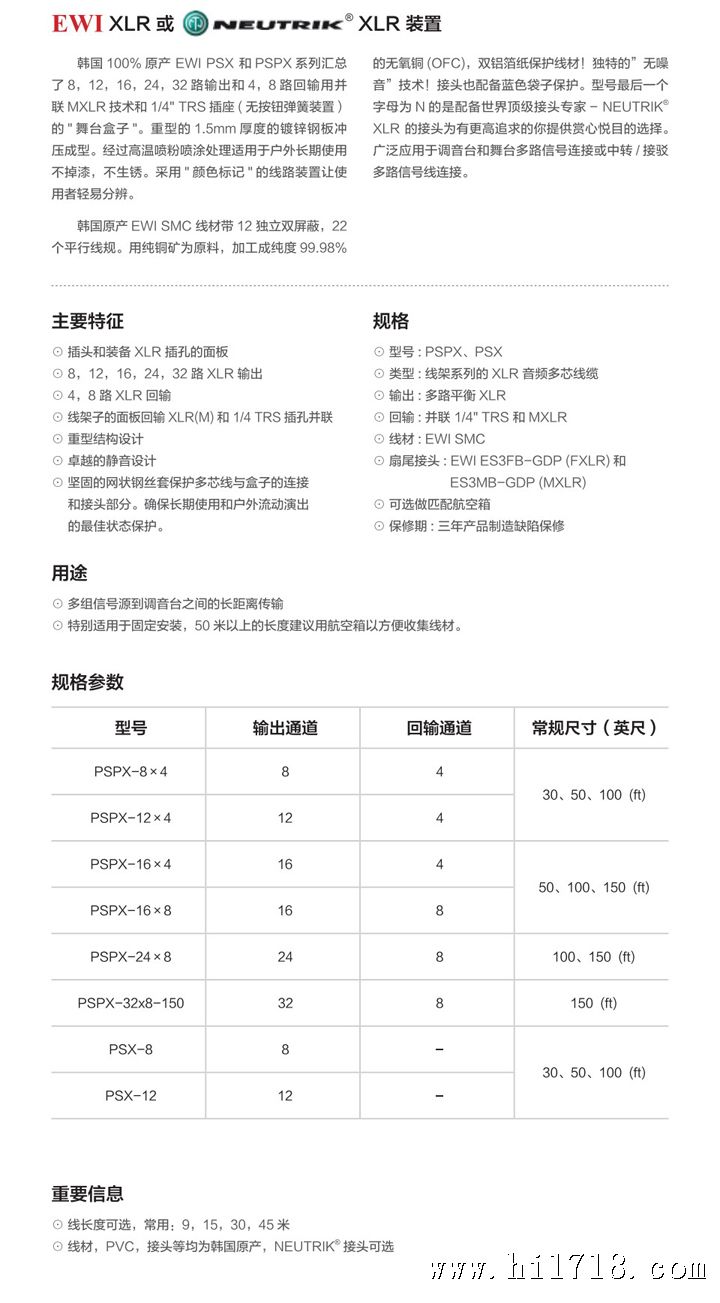

Specifications:
Manufacture: EWI
Model: PSX-8
Te: Straight 8 Channel XLR Send Snake
Stage Box Dimensions:
Left to Right: 7 1/8"
Front to Back: 8 3/4"
Height: 2 1/2"
Actual weights:
PSX-8-50: 11 lbs.
Available lengths and shipping weights for EWI XLR equipped:
PSX-8-50: 50 ft, 15 lbs.
Warranty: 3 years covering mfg. defects.
