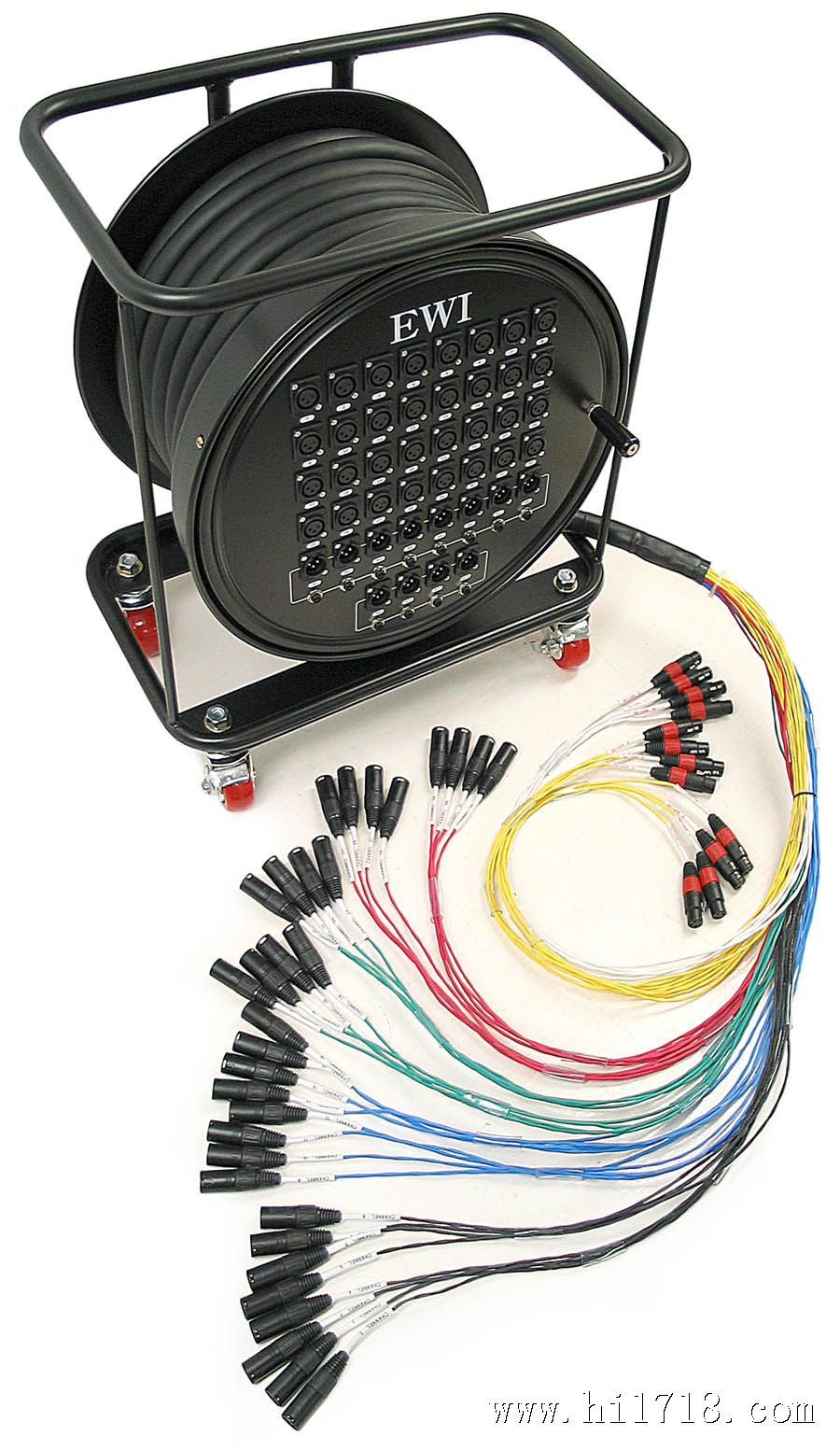

原装韩国 EWI 栗蛇系列 RPPX-32x12 舞台连接线
Key Featur:
All XLR cord ends and panel jacks
32 XLR Sends
12 XLR Returns
Returns parallel MXLR & 1/4" TRS on reel drum
Heavy duty construction
Excellent noise rejection
Mounted on a reel for ease of use in portable applications.
Mh grip strain relief on the main trunk near the fantail
Applications:
Multi-signal transfer from the stage or sound booth to the mix console.
Extra returns for monitor mix or crossovers.
Recommended for portable applications.
Technical Dcription:
The EWI RPPX-32x12 seri snake is a medium duty profsional product. This snake is an excellent choice for portable applications. You only roll out as much cable as you need, and leave the rt on the drum. The 12 returns make it possible to run your drive rack from front of house as well as extra room for monitor mix if needed.

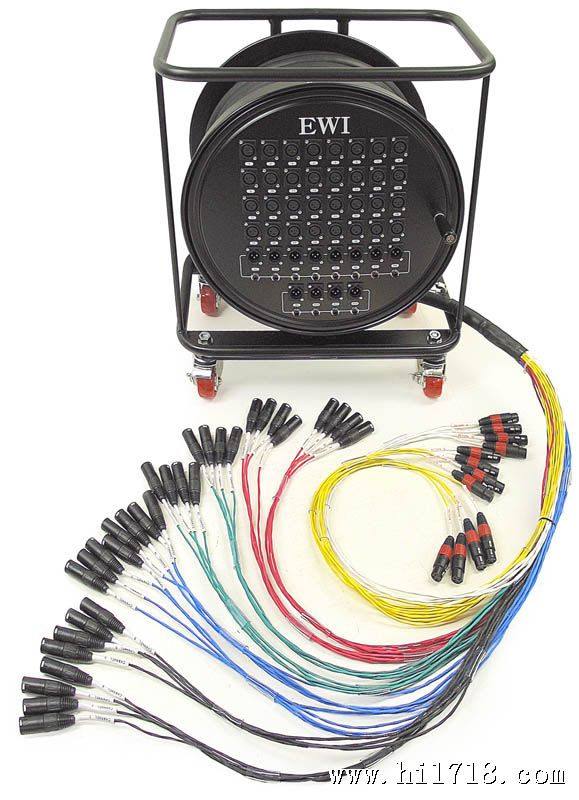

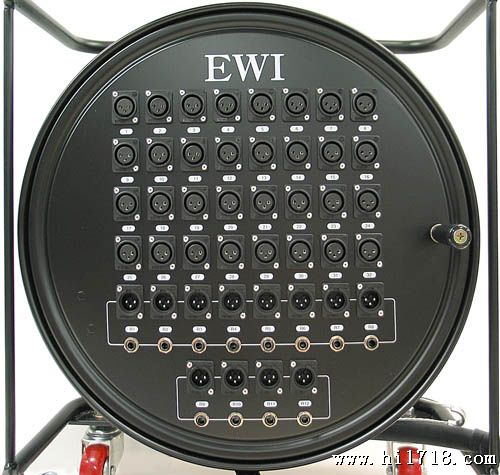

Both the fantail and stage box are all XLR. This is a 32 channel XLR send snake with 12 XLR returns on a reel. The returns have parallel MXLR and 1/4" TRS panel jack on the reel drum.

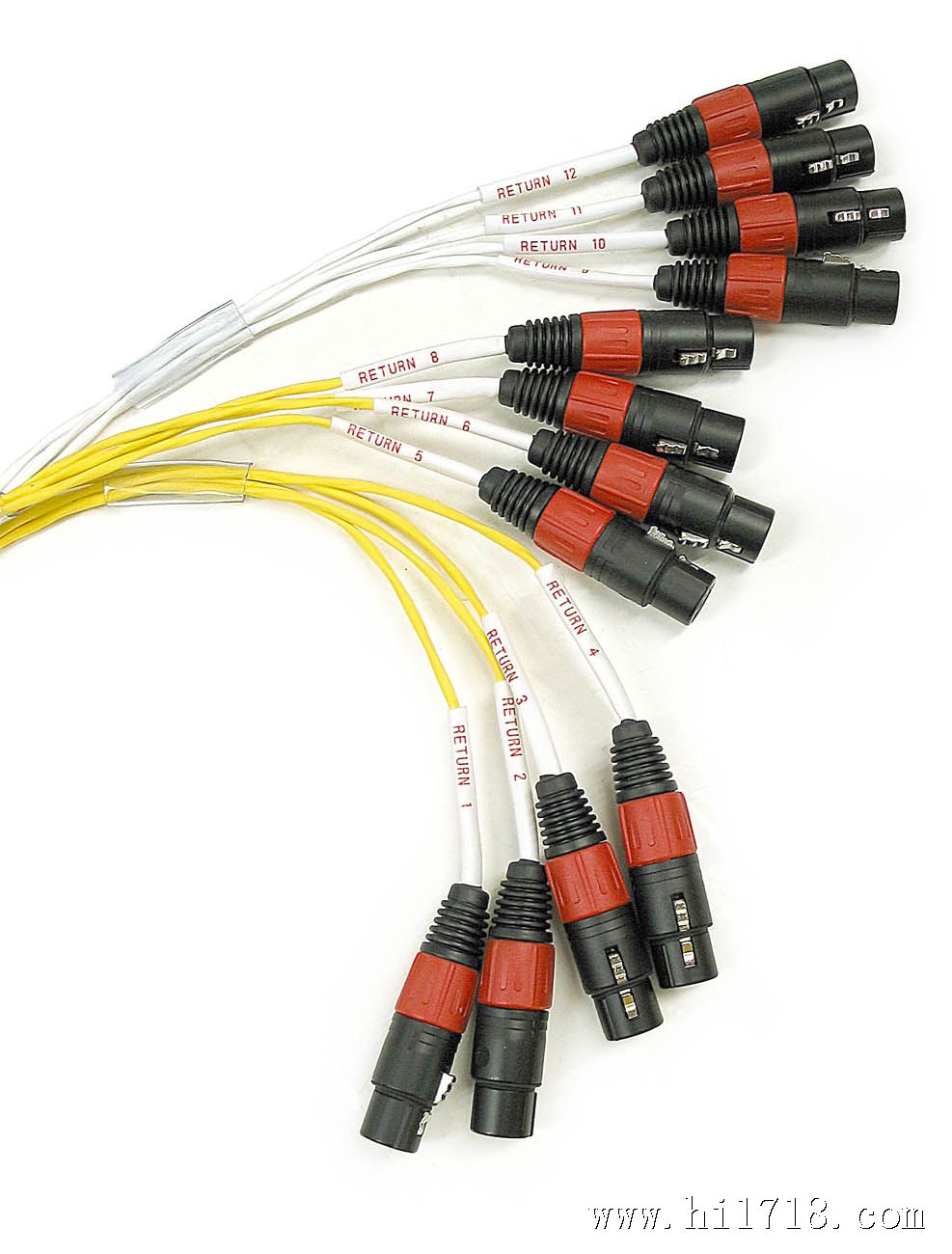

The fantail is all XLR with the Caps of the Returns color coded Red for easy identification. We have various lengths of MXLR to ¼" TRS adaptor cabl available if your drive rack requir ¼" TRS connections for the sends, and if you need a little more length on the send channels to reach the drive rack.

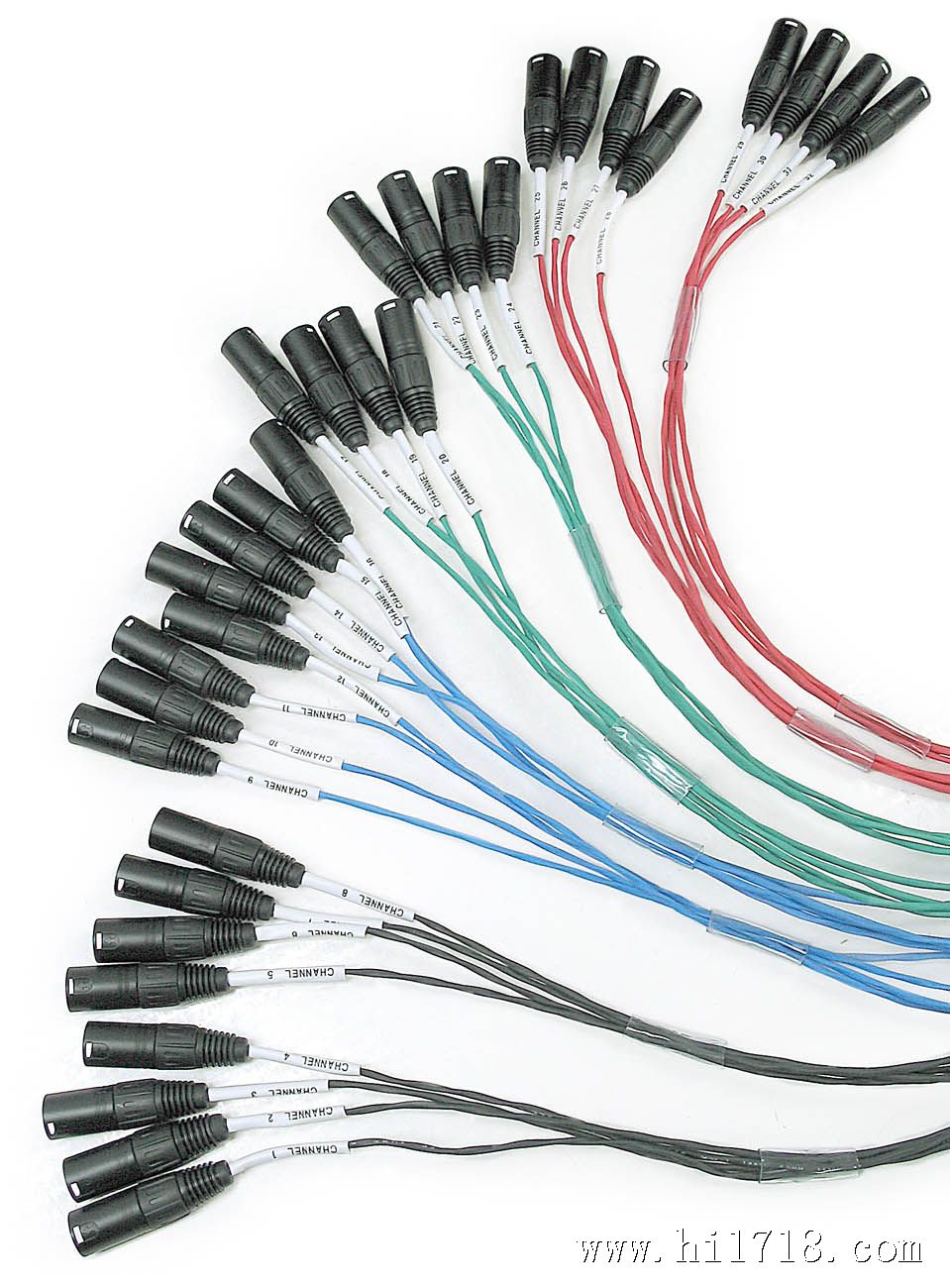

The reel and drum are medium duty and well labeled. The fantail is heavy duty, color coded to groups and very well labeled with indelible ink. The main trunk is constructed with EWI C cable which is 44 individual shielded pairs, 22 ga., high copper purity conductors with double aluminum foil shield and trace wire, which is heavy duty and very flexible. There is a mh grip strain relief at the fantail which will allow the fantail to be supported and take the strain off panel jacks.
There are 4 ea. 2 1/2" casters mounted on the bottom of the reel frame for transportation. Two of the four casters have locking brak on them. The casters are a good size for in-doors use; however, they are a little on the all side for rolling across gr or a gravel parking lot.
The snake is shipped with the casters not embled on the frame. This reduc the chanc of the casters or frame being damaged in shipping. Mounting the casters on the frame is facilitated by using a 19MM (or 3/4") and 17MM (or 11/16") end wrench. Many folks mount the reel snake in a pull over flight case. Tically I have various cas in stock that are well suited for this.
There is a brake mechani on the drum to set it in place once you'll reeled out enough cable. It's a friction brake, so it don't lock the drum down hard which is a plus if somebody starts tugging on the cable unaware that the brake is set. There are two brake indents where the brake can be set to lock the drum down solid. It even com with a nifty blue bag to protect the fantail when not in use (pictured).

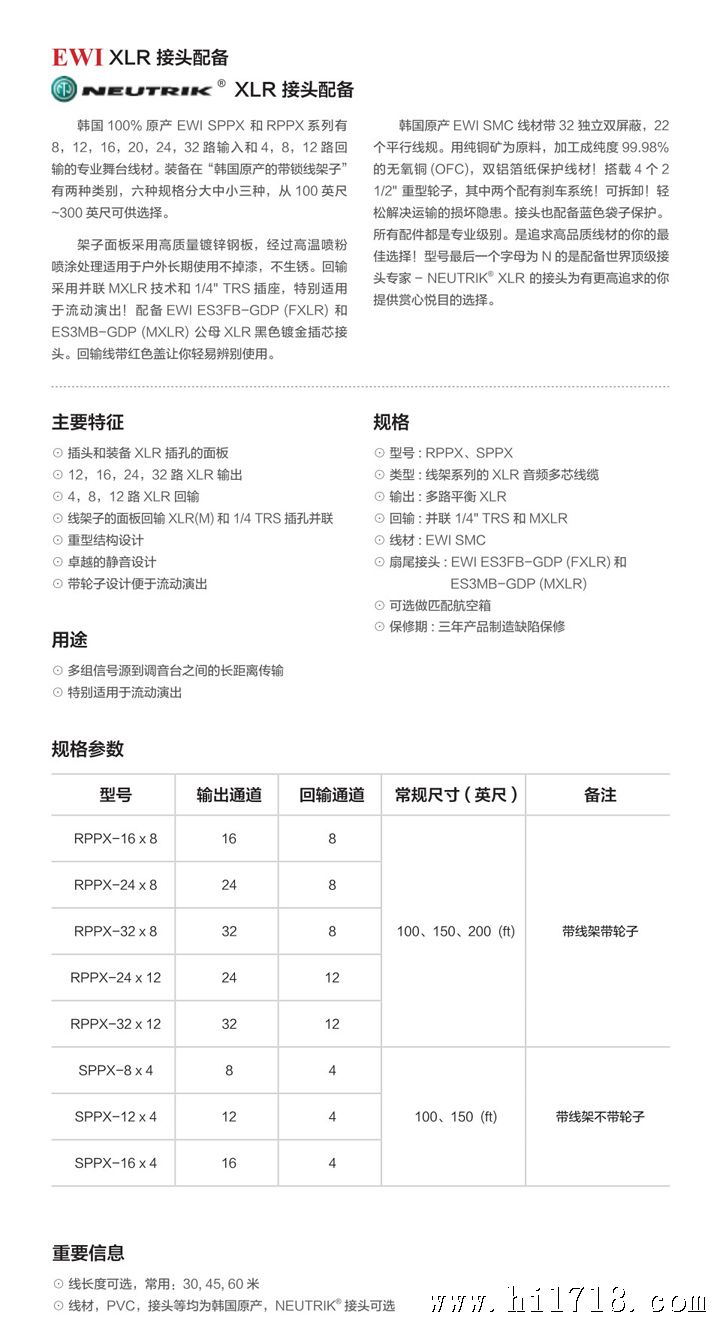

Specifications:
•Manufacture: EWI
•Model: RPPX-32x12
•Te: Reel te XLR Audio Snake
•Sends: 32 channels balanced XLR
•Returns: 12 channels balanced XLR with
parallel 1/4" TRS and MXLR on the reel drum.
•Main Trunk: EWI C-32
•Fantail length: 25"
•Connectors: EWI 3F and 3M
•Outside Frame Dimensions (150 and 200 foot models)
?Left to Right: 19 3/4"
?Front to Back: 16 3/8"
?Height without casters: 20"
•Actual weights:
?RPPX-32x12-100: 94 lbs.
?RPPX-32x12-150: 126 lbs.
?RPPX-32x12-200: 139 lbs.
•Available lengths and shipping weights:
?RPPX-32x12-100: 100 ft, 102 lbs.
?RPPX-32x12-150: 150 ft, 134 lbs.
?RPPX-32x12-200: 200 ft, 150 lbs.
•Warranty: 3 years covering mfg. defects
