| 品牌 | Sensata Technology | 型号 | 83HP/84HP Series |
| 类型 | 陶瓷型压力变送器 | 测量介质 | 制冷劑/冷凍油/機油/空氣/部分化學介質 |
| 测量范围 | 0-30,000 psis（kPa） | 等级 | ±0.25% |
| 输出信号 | 0.5-4.5 Vdc（mA） | 防爆等级 | ⅡC |
| 防护等级 | IP67 | 电源电压 | 9-32 Vdc（V） |
| 接口尺寸 | 22（mm） |
The 83HP and 84HP series sensors are ideally suited for severe industrial OEM applications.
Housed in corrosion resistant stainless steel, these sensors include a hermetic front end with a variety of electrical and pressure connection options.
Features & Benefits
• High accuracy over wide operating temperature range.
• Low total error band
• Media compatible stainless steel housing
• EMI protected to 300 V/M
• Wide operating temperature range
• Small size
Applications
• Process Control & Automation
• Compressors & Pumps
• Hydraulics & Pneumatics
• Agriculture & Construction Equipment
• Transportation & Off Road Vehicles
• Engine Controls & Monitors
• Air Conditioning & Refrigeration
• Alternative Energy Management
• Load Management

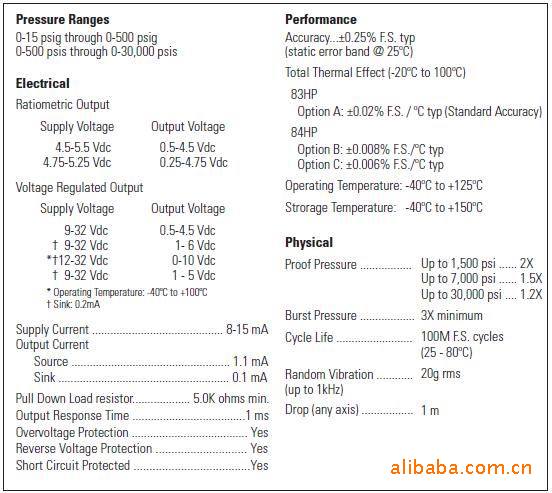

Technical Specifications

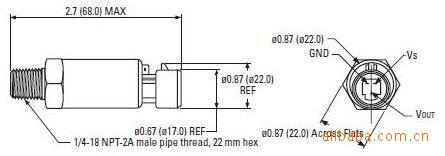

Dimensions (Typical)
