| 品牌 | Sensata Technology | 型号 | 3PP8 Series |
| 类型 | 电容式压力变送器 | 测量介质 | 制冷劑/冷凍油/機油/空氣/CO2 |
| 测量范围 | 0-15000 psis（kPa） | 等级 | ±0.7% |
| 输出信号 | 0.5 to 4.5 Vdc（mA） | 防爆等级 | ⅡC |
| 防护等级 | IP67 | 电源电压 | 5 ± 0.25 Vdc（V） |
| 接口尺寸 | 1/4” NPTF male（mm） |
The 3PP8 series sensor uses silicon MEMs strain gage technology. The strain gage is glass bonded to a stainless steel diaphragm.
Additional benefits include digital temperature compensation, EEPROM memory and self diagnostic capability. It is ideal for the most demanding applications.
Features & Benefits
• High Accuracy
• Stainless Steel Housing
• Hermetically Sealed
• Low Cost
• Capable of Pressure Ranges up to 15000 psi
• Small Size
Applications
• Agriculture & Construction Equipment
• Vehicle Systems
• CO2 Compressors
• Pumps
• Hydraulics & Pneumatics
• Engine Controls & Monitors
• Air Conditioning & Refrigeration

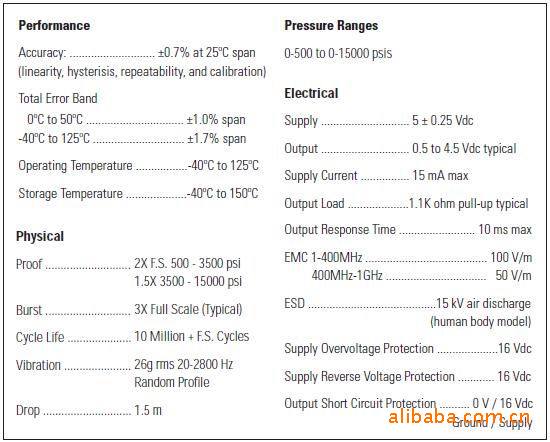

Technical Specifications

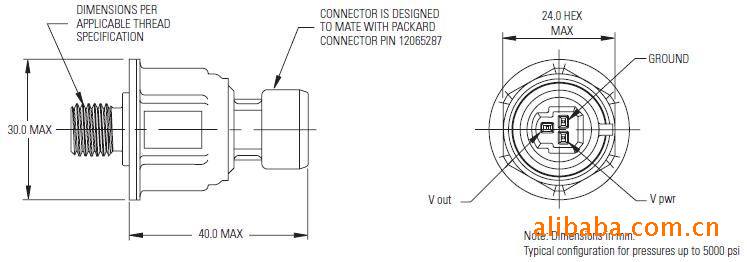

Dimensions
Pressure Connections (24mm hex body)
• 1/8” NPTF male (for pressures up to 10,000 psi)
• 1/4” NPTF male (for pressures up to 10,000 psi)
• 3/8”-24 UNF male o-ring
• M10 x 1 male o-ring
• M12 X 1.5 male o-ring
Electrical Connection
• Standard Packard Metri-Pack™ (for pressures up to 5000 psi)
• AMP MQS™
• AMP EJII™ (for pressures over 5000 psi)
Pressure Ranges
• 0 - 500 psis 0 - 7500 psis
• 0 - 1000 psis 0 - 10000 psis
• 0 - 3000 psis 0 - 12500 psis
• 0 - 5000 psis 0 - 15000 psis
