| 类型 | 数字式电压测量仪表 | 品牌 | 三华 |
| 型号 | SI9001/SI9002 | 测量范围 | 700v~1400（V） |

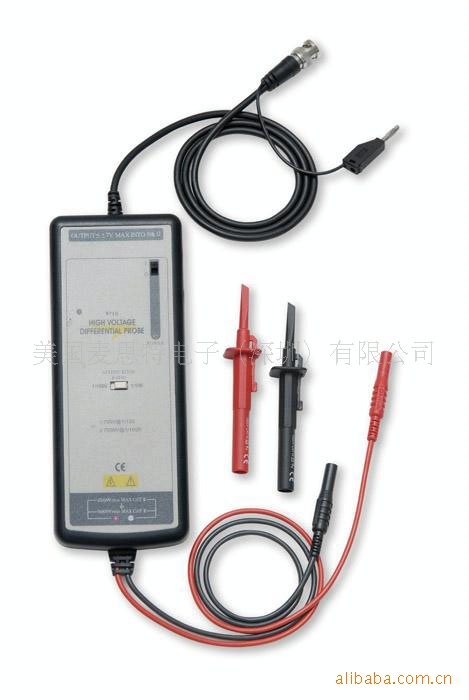

台湾三华示波器有源隔离探棒100mHZ700v-1400v
可匹配任何品牌的示波器使用，可与泰克差分探棒相比，价格合理，欢迎来电咨询 01350(0755)
| Specifications | |
| Te | SI9001 SI9002 |
| Bandwidth | 25MHz |
| Input Max.Voltage | &plun;700V &plun;1400V |
| Attenuation | 1:10/100 1：20/200 |
| Accuracy | &plun;2% |
| Input Impedance | 4MΩ//5.5pF each side to ground |
| Swing(into 50kΩ load) | &plun;7v |
| Offset(tical) | ＜&plun;5mV |
| Noise(tical) | 0.7mVrms |
| Features: | |
| 1.Up to&plun;1400V(DC+Peak AC)Differential Common Mode | |
| 2.Bandwidth up to 25MHz | |
| 3.Safety Certifed | |
| 4.Economical Cost | |
