供应雅弧09型系列电位器/带开关电位器
| 价 格： | 面议 | |
| 型号/规格： | RV09 | |
| 品牌/商标： | YAHU | |
| 环保类别： | 无铅环保型 | |
| 主要用途： | 家用电器 | |
| 标称阻值： | 1K-1M | |
| 阻值变化规律： | 直线式 | |
| 外形尺寸： | 09 |
9mm rotary potentiometer with metal shaft and with switch,
Resistance range: 500-1MΩ
Tolerance of resistance: ± 20%
Resistance taper: A B C
Power rating: Curve B:0.05W ,Other than B:0.025W.
Terminal resistance: 20Ω max.
Rotational noise: ≤ 100mv
Insulated resistance: More than 100M at DC 250V 1 minute.
Withstanding Voltage: For 1 minute or more at AC250V
Total Rotational Angle: 300± 10°
Operating force: 10-200gf. Cm Switch rating: DC 16V 1A
Shaft Stopper Strength: 3.0Kgf min
Rotational life: 10,000 cycles.
- 所属城市：广东 东莞
- [联系时请说明来自维库仪器仪表网]
- 联系人： 邱先生
- 电话：0769-23324008-801
- 传真：-
- 手机：13392305055
- QQ ：

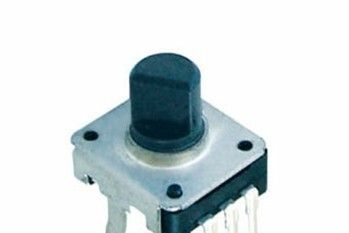

供应EC16型编码器 编码开关
信息内容：EC1601开关编码器 Pulses/rotation is 24 pulses/360° Rotational angle is 360° Endless Rated voltage/rated current is DC5V 0.5mA Click troque is 80~200gf/cm Rotational life is 30000cycles Switch ratings is DC12V 50mA Travel of switch is 0.5± 0.4mm Switch working torque /force is 500± 200g Switch life is 15000cycles min 广泛应用于调音电子电器产品上，医用设备上。
供应EC12编码器 编码开关
信息内容：EC121S开关编码器 Pulses/rotation is 24 pulses/360° Rotational angle is 360° Endless Rated voltage/rated current is DC5V 0.5mA Click troque is 80~200gf/cm Rotational life is 30000cycles Switch ratings is DC12V 50mA Travel of switch is 0.5± 0.4mm Switch working torque /force is 500± 200g Switch life is 15000cycles min
