供应EC12编码器 编码开关
| 价 格： | 面议 | |
| 型号/规格： | EC12 | |
| 品牌/商标： | YAHU |

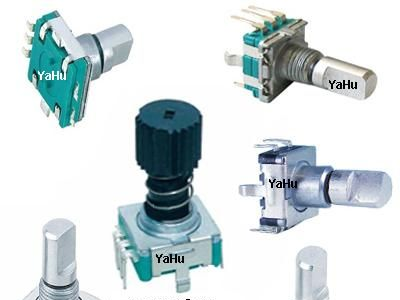

EC121S开关编码器
Pulses/rotation is 24 pulses/360°
Rotational angle is 360° Endless
Rated voltage/rated current is DC5V 0.5mA
Click troque is 80~200gf/cm
Rotational life is 30000cycles
Switch ratings is DC12V 50mA
Travel of switch is 0.5± 0.4mm
Switch working torque /force is 500± 200g
Switch life is 15000cycles min
- 所属城市：广东 东莞
- [联系时请说明来自维库仪器仪表网]
- 联系人： 邱先生
- 电话：0769-23324008-801
- 传真：-
- 手机：13392305055
- QQ ：
供应EC11编码器 编码开关
信息内容：EC11型编码器 Pulses/rotation is 15pulses/360° 20pulses/360° Rotational angle is 360° Endless Rated voltage/rated current is DC5V 0.5mA Click troque is 80~200gf/cm Rotational life is 30000cycles Switch ratings is DC12V 50mA Travel of switch is 0.5± 0.4mm Switch working torque /force is 500± 200g Switch life is 15000cycles min
供应直滑式电位器 推子电子位器 调音台电位器
信息内容：直滑式电位器 阻值范围：Resistance range : 500Ω ~1MΩ 滑动力矩：Operating force: 10~200gf. Cm 端子强度：Stopper Strength 1kgf.cm min. 滑动行程：Lever Wobble Click Slip-Out Force 80~300gf.cm. Resistance (law)taper is A B C Total Resistance Range: ±20%(more than 1MΩ ±30%) Power Rating: 0.05W, 0.1W, 0.2W, 0.25W, 0.2W Slide Travel: 15mm,20mm,30mm,45mm,60mm Withstanding voltage: 1Min, AT 300V AC Insulation resistance: 100MΩ at 250V DC Slide Noise: Less than 100mV Sliding life: 15, 000cycles www.yahuelec.com
