供应场效应管DMOS管CS730A8H
| 价 格： | 1.00 | |
| 型号/规格： | CS730A8H | |
| 品牌/商标： | 华晶 | |
| 封装形式： | TO-220 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 直插式 | |
| 包装方式： | 管装 | |
| 功率特征： | 中功率 |
6A 75V TO-220AB MOSFET
应用领域：电子镇流器，车载逆变器，非隔离式的LED驱动
Silicon N-Channel Power MOSFET
CS730A8H
General Description：
VDSS
400
V
ID
6
A
PD(TC=25℃)
75
W
RDS(ON)
0.88
Ω
CS730A8H, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. The package form is TO-220AB, which accords with the RoHS standard.
Features：
Fast Switching
Low ON Resistance(Rdson≤1Ω)
Low Gate Charge (Typical Data:17nC)
Low Reverse transfer capacitances(Typical:8.3pF)
100% Single Pulse avalanche energy Test
- 所属城市：上海 上海市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 田先生\刘小姐
- 电话：021-38046966
- 传真：021-38840019
- 手机：18964366969
- QQ ：
供应场效应管CS13N50A8H
信息内容：应用领域：电子镇流器，车载逆变器，非隔离式的LED驱动，汽车安定器 Silicon N-Channel Power MOSFET CS13N50A8H General Description： CS13N50A8H, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. The package form is TO-220AB, which accords with the RoHS standard. Features： Fast Switching Low ON Resistance(Rdson≤0.45Ω) Low Gate Charge (Typical Data:85nC) Low Reverse transfer capacitances(Typical:100pF) 100% Single Pulse avalanche energy Test

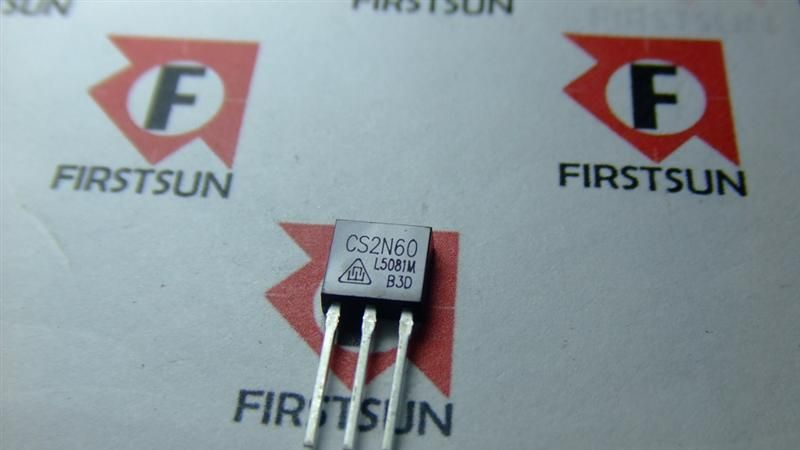

供应华晶场效应管CS2N60B3D
