供应场效应管CS2N60A3H
| 价 格： | 1.00 | |
| 型号/规格： | CS2N60A3H | |
| 品牌/商标： | 华晶 | |
| 封装形式： | TO-220 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 直插式 | |
| 包装方式： | 管装 | |
| 功率特征： | 中功率 |
主要应用于电源，充电器，整流器，节能灯，LED灯等.
Silicon N-Channel Power MOSFET
CS2N60A3H
General Description：
CS2N60A3H, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. The package form is TO-251, which accords with the RoHS standard..
Features：
Fast Switching
Low ON Resistance(Rdson≤4.5Ω)
Low Gate Charge (Typical Data:8nC)
Low Reverse transfer capacitances(Typical:3.8pF)
100% Single Pulse avalanche energy Test
- 所属城市：上海 上海市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 田先生\刘小姐
- 电话：021-38046966
- 传真：021-38840019
- 手机：18964366969
- QQ ：
供应场效应管CS840FA9H
信息内容：Silicon N-Channel Power MOSFET CS8N90FA9 General Description： CS8N90FA9, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. The package form is TO-220F, which accords with the RoHS standard. Features： Fast Switching Low ON Resistance(Rdson≤1.35Ω) Low Gate Charge (Typical Data:49nC) Low Reverse transfer capacitances(Typical:12pF) 100% Single Pulse avalanche energy Test VDSS 900 V ID 8 A PD (TC=25℃) 57 W RDS(ON)Typ 1.2 Ω

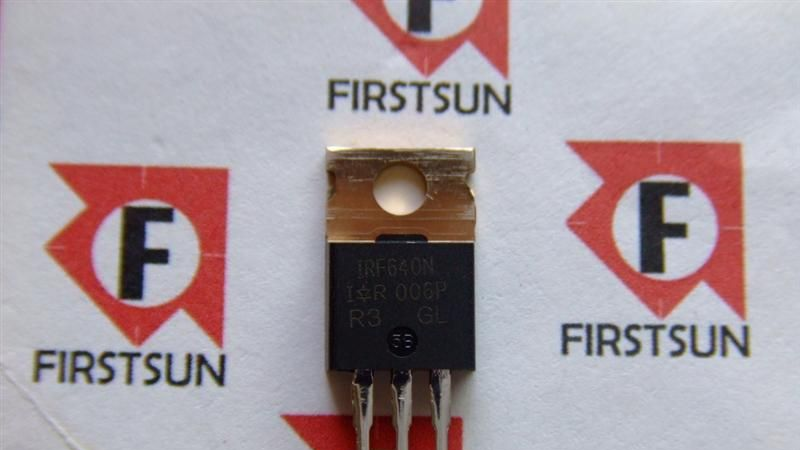

供应场效应管IRF640NPBF
信息内容：主要应用领域：低压电子镇流器，电视剧枕校 Advanced Process Technology Dynamic dv/dt Rating 175°C Operating Temperature Fast Switching Fully Avalanche Rated Ease of Paralleling Simple Drive Requirements Description Fifth Generation HEXFET Power MOSFETs from International Rectifier utilize advanced processing The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry. The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible onresistance in any existing surface mount package. The D2Pak is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2.0W in a typic...
