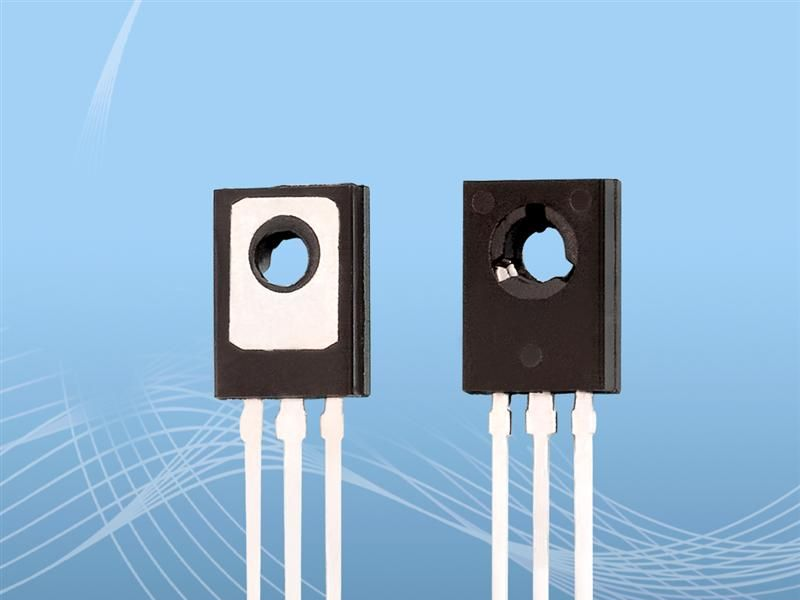

三极管TIP42 series
| 价 格： | 面议 | |
| 型号/规格： | TIP42 series | |
| 品牌/商标： | SZGKT | |
| 封装形式： | TO-220 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 直插式 | |
| 包装方式： | 单件包装 |
FEATURES：
Medium Power Linear Switching
Applications
Complement to TIP41/41A/41B/41C
MAXIMUM RATINGS (TA=25℃ unless otherwise noted)：
Symbol
Parameter
TIP42
TIP42A
TIP42B
TIP42C
Units
VCBO
Collector-Base Voltage
-40
-60
-80
-100
V
VCEO
Collector-Emitter Voltage
-40
-60
-80
-100
V
VEBO
Emitter-Base Voltage
-5
V
Ic
Collector Current -Continuous
-6
A
Tj
Junction Temperature
150
℃
Tstg
Storage TemperatureRange
-55~150
℃
ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified) ：
Symbol
Test conditions
MIN
MAX
Unit
TIP42
42A
42B
42C
V(BR)CBO
Ic=1mA, IE=0
-40
-60
-80
-100
V
V(BR)CEO
IC= 30mA, IB=0
-40
-60
-80
-100
V
V(BR)EBO
IE= 1mA, IC=0
-5
V
ICBO
VCB=-40V/-60V/
-80V/-100V, IE=0
-0.4
mA
ICEO
ICE=-30/-60V, IE=0
-0.7
mA
IEBO
VEB=-5V, IC=0
-1
mA
hFE(1)
VCE=- 4V, IC=
-0.3A
30
hFE(2)
VCE=-4 V, IC= -3A
15
75
VCE(sat)
IC=-6A, IB=-0.6A
-1.5
V
VBE(on)
VCE=- 4V, IC=-6A
-2
V
fT
VCE=-10V , IC=-0.5A
f
=1MHz
3
MHz
