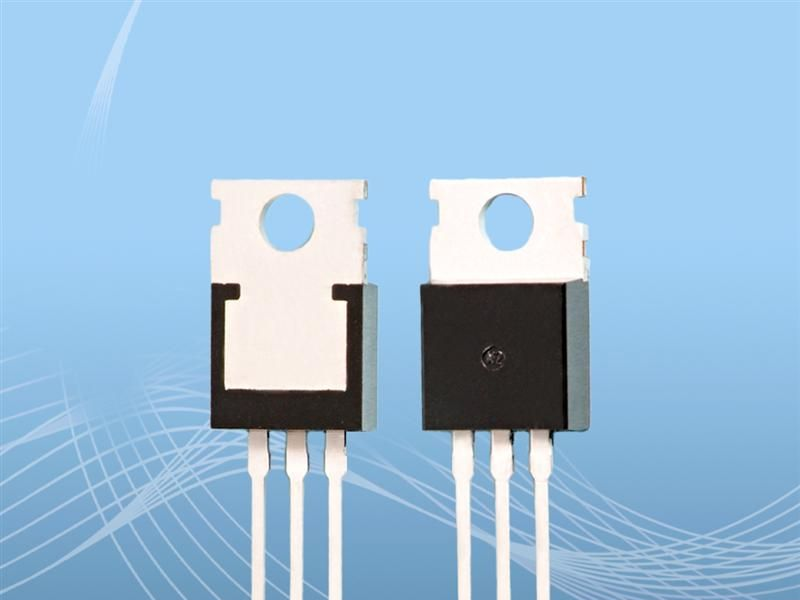

三极管TIP12×
| 价 格： | 面议 | |
| 型号/规格： | TIP12× | |
| 品牌/商标： | SZGKT | |
| 封装形式： | TO-220 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 直插式 | |
| 包装方式： | 单件包装 |
DESCRIPTION:
The TIP120, TIP121 and TIP122 are silicon Epitaxial-Base NPN power transistors in monolithic
Darlington configuration mounted in Jedec TO-220 plastic package. They are intented for use
in power linear and switching applications.The complementary PNP types are TIP125,TIP126 and
TIP127, respectively.
ABSOLUTE MAXIMUM RATINGS:
|
Symbol |
Parameter |
|
Value |
Unit |
||
|
NPN |
TIP120 |
TIP121 |
TIP122 |
|
||
|
PNP |
TIP125 |
TIP126 |
TIP127 |
|||
|
VCBO |
Collector-Base Voltage (IE = 0) |
60 |
80 |
100 |
V |
|
|
VCEO |
Collector-Emitter Voltage (IB = 0) |
60 |
80 |
100 |
V |
|
|
VEBO |
Emitter-Base Voltage (IC = 0) |
5 |
V |
|||
|
IC |
Collector Current |
5 |
A |
|||
|
ICM |
Collector Peak Current |
8 |
A |
|||
|
IB |
Base Current |
0.1 |
A |
|||
|
Tstg |
Storage Temperature |
-65 to 150 |
℃ |
|||
|
Tj |
Max. Operating Junction Temperature |
150 |
℃ |
|||
ELECTRICAL CHARACTERISTICS:
Symbol
Parameter
Test Conditions
Min
Typ
Max
Unit
ICEO
Collector Cut-off
Current (IB = 0)
for TIP120/125 VCE = 30 V
0.5
mA
for TIP121/126 VCE = 40 V
0.5
for TIP122/127 VCE = 50 V
0.5
ICBO
Collector Cut-off
Current (IB = 0)
for TIP120/125 VCB = 60 V
0.2
mA
for TIP121/126 VCB = 80 V
0.2
for TIP122/127 VCB = 100 V
0.2
IEBO
Emitter Cut-off Current
(IC = 0)
VEB = 5 V
2
mA
VCEO(sus)
Collector-Emitter
Sustaining Voltage
(IB = 0)
IC = 30 mA
60
80
100
V
for TIP120/125
for TIP121/126
for TIP122/127
VCE(sat)
Collector-Emitter
Saturation Voltage
IC = 3 A IB = 12 mA
2
4
V
IC = 5
A IB = 20 mA
VBE(on)
Base-Emitter Voltage
IC = 3
A VCE = 3 V
V
hFE
DC
Current Gain
IC = 0.5
A VCE = 3 V
1000
IC = 3 A VCE = 3 V
1000
