双向可控硅 6A TRIACs BTA06/BTB06 series
| 价 格： | 面议 | |
| 型号/规格： | 6A TRIACs BTA06/BTB06 series | |
| 品牌/商标： | SZGKT |
MAIN FEATURES:
|
Symbol |
Value |
Unit |
|
IT(RMS) |
6 |
A |
|
VDRM/VRRM |
600 and 800 |
V |
|
IG(Q1) |
5 to 50 |
mA |
|
Parameter |
A0608 |
|
VRRM（V） |
800 |
|
IT(A) |
6 |
|
VDRM（V） |
800 |
|
IGT YTP(MA) |
5 |
|
IGT MAX(MA) |
50 |
|
VTM(V) |
1.55 |
|

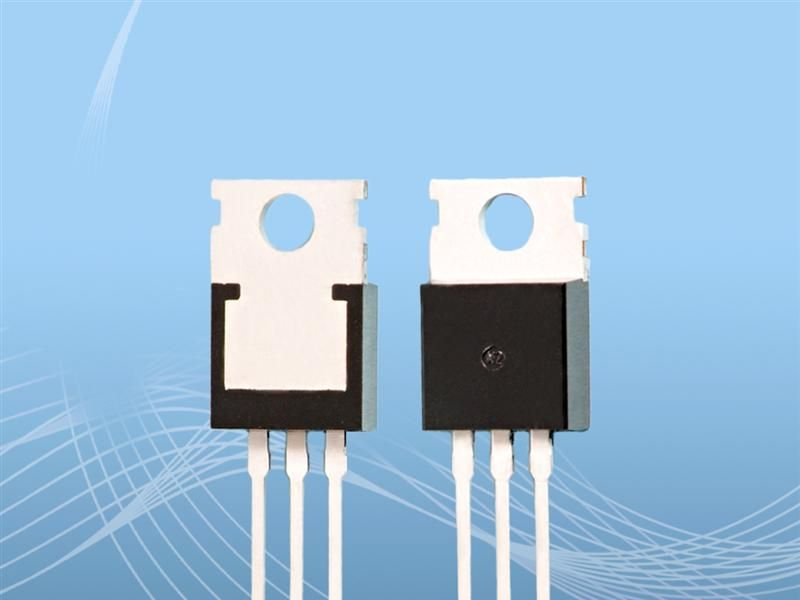

PACKAGE |
TO-220 |
DESCRIPTION:
Suitable for AC switching operations, the A/B06 series can be used as an ON/OFF function in
applications such as static relays, heating regulation, induction motor starting circuits...All for
phase control in light dimmers, motor speed controllers,...
The snubberless ang logic level versions(A/B...BX) are specially recommended for use on in-
ductive loads,thanks for their high conmutation performances.By using an internal ceramic pad,
the A series provides voltage insulates tab(rated at 2500V RMS) complying with UL standards.
ABSOLUTE MAXIMUM RATINGS:
|
Symbol |
Parameter |
Value |
Unit |
||
|
IT(RMS) |
RMS on-state current (full sine wive) |
TO-220AB |
Tc=110℃ |
6 |
A |
|
TO-220AB Ins |
Tc=105℃ |
6 |
|||
|
ITSM |
Non repetitive surge peak on-state |
F=50Hz |
t=20ms |
60 |
A |
|
current(full cycle, Tj=25℃ ) |
F=60Hz |
t=16.7ms |
63 |
||
|
Tstg |
Storage junction temperature rage Operating junction temperature rage |
-40 to +150℃ |
|||
|
Tj |
-40 to +125℃ |
||||
|
Symbol |
Test conditions |
Quadrant |
|
A/B06 |
Unit |
|||
|
B1 |
B2 |
B3 |
B4 |
|||||
|
IGT |
VD=12V RL=30Ω |
Ⅰ-Ⅱ-Ⅲ |
MAX |
5 |
10 |
35 |
50 |
mA |
|
VGT |
Ⅰ-Ⅱ-Ⅲ |
MAX |
1.3 |
V |
||||
|
dV/dt |
VD=67%VDRM gate open Tj=125℃ |
MIN |
20 |
40 |
400 |
1000 |
V/us |
|
|
Symbol |
Test conditions |
Quadrant |
|
A/B06 |
Unit |
|
|
4 |
5 |
|||||
|
IGT |
VD=12V RL=30Ω |
Ⅰ-Ⅱ-Ⅲ |
MAX |
25 |
50 |
mA |
|
Ⅳ |
50 |
100 |
||||
|
VGT |
ALL |
MAX |
1.3 |
V |
||
|
dV/dt |
VD=67%VDRM gate open Tj=125℃ |
MIN |
200 |
400 |
V/us |
|
|
Symbol |
Test conditions |
Value |
Unit |
||
|
VT(2) |
ITM=5.5A, tp=380us |
Tj=25℃ |
MAX |
1.55 |
V |
|
IDRM |
VDRM=VRRM |
Tj=25℃ |
MAX |
5 |
uA |
|
IRRM |
Tj=125℃ |
1 |
mA |
||
ORDERING INFORMATION SCHEME:
A/B06系列型号含义见插入文件:/upfiles/2012/1113/file/20121113020906_73300.doc
