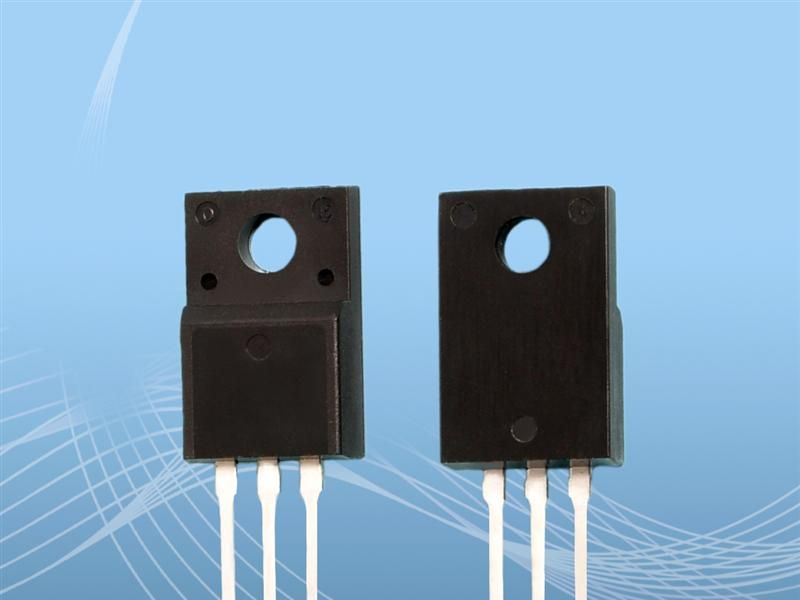

双向可控硅 BTA216
| 价 格： | 面议 | |
| 型号/规格： | BTA216 | |
| 品牌/商标： | SZGKT |
GENERAL DESCRIPTION
Glass passivated high commutation triacs in a plastic envelope intended
foruse in circuits wherehigh staticand dynamic dV/dt and high dI/dt canoccur. These devices will commutate the full rated rms current at the
maximum rated junction temperature, without the aid of a snubber.
Features and benefits
* 3Q technology for improved noise immunity
* Direct interfacing with low power drivers and microcontrollers
* Good immunity to false turn-on by dV/dt
* High commutation capability with very sensitive gate
* High voltage capability
* Planar passivated for voltage ruggedness and reliability
* Triggering in three quadrants only
Applications
* Electronic thermostats
* General purpose motor controls
Quick reference data
* VDRM ≤ 500V / 600V / 800V
* ITSM ≤ 140A
* IT(RMS) ≤ 16A
* IGT ≤ 5mA(BTA216-800D)
* IGT ≤ 10mA(BTA216-800E)
* IGT ≤ 25mA(BTA216-800F)
* IGT ≤ 50mA(BTA216-800B)
* VT : 1.2-1.5V
* VGT : 0.7-1.5V
