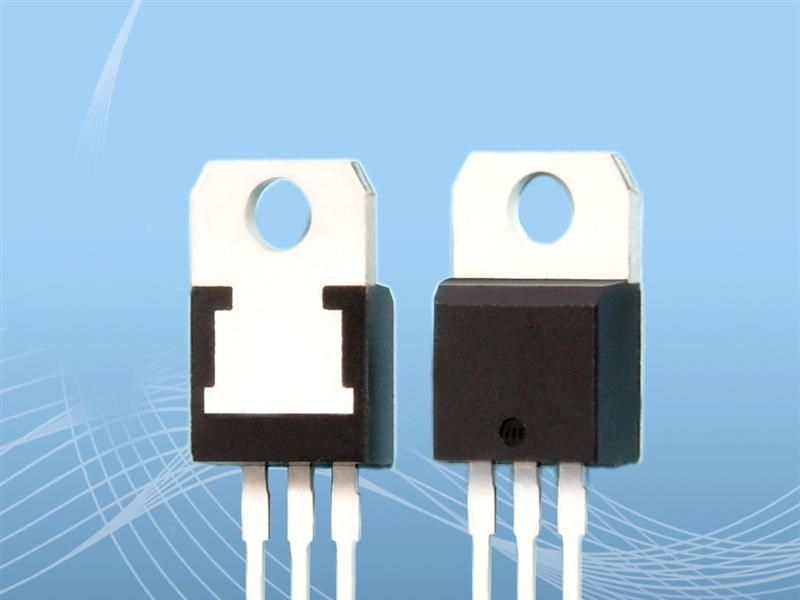

双向可控硅 16A TRIACs BTA16/BTB16series
| 价 格： | 面议 | |
| 型号/规格： | 16A TRIACs BTA16/BTB16series | |
| 品牌/商标： | SZGKT |
MAIN FEATURES:
|
Symbol |
Value |
Unit |
|
IT(RMS) |
16 |
A |
|
VDRM/VRRM |
600，700 and 800 |
V |
|
IG(Q1) |
10 to 50 |
mA |
DESCRIPTION:
Available either in through-hole or surface-mount packages, the BTA/BTB16 and T16 triac series
is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications
such as static relays, heating regulation, induction motor starting circuits... or for phase control operation
in light dimmers, motor speed controllers, ...
The snubberless versions (BTA/BTB...W and T16 series) are specially recommended for use on
inductive loads, thanks to their high commutation performances. By using an internal ceramic pad,
the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards
(File ref.: E81734).
ABSOLUTE MAXIMUM RATINGS:
|
Symbol |
Parameter |
Value |
Unit |
||
|
IT(RMS) |
RMS on-state current (full sine wive) |
D2PAK/ TO-220AB |
Tc=100℃ |
16 |
A |
|
TO-220AB Ins |
Tc=85℃ |
||||
|
ITSM |
Non repetitive surge peak on-state |
F=50Hz |
t=20ms |
160 |
A |
|
current(full cycle, Tj=25℃ ) |
F=60Hz |
t=16.7ms |
168 |
||
|
Tstg |
Storage junction temperature rage Operating junction temperature rage |
-40 to +150℃ |
|||
|
Tj |
-40 to +125℃ |
||||
|
Symbol |
Test conditions |
Quadrant |
|
T16 |
A16/B16 |
Unit |
||
|
T1635 |
B2 |
B3 |
B4 |
|||||
|
IGT |
VD=12V RL=33Ω |
Ⅰ-Ⅱ-Ⅲ |
MAX. |
35 |
10 |
35 |
50 |
mA |
|
VGT |
Ⅰ-Ⅱ-Ⅲ |
MAX. |
1.3 |
V |
||||
|
dV/dt |
VD=67%VDRM gate open Tj=125℃ |
MIN. |
500 |
40 |
500 |
1000 |
V/us |
|
|
Symbol |
Test conditions |
Quadrant |
|
A16/B16 |
Unit |
|
|
|
|
|
|
4 |
5 |
|
|
IGT |
VD=12V RL=33Ω |
Ⅰ-Ⅱ-Ⅲ |
MAX. |
25 |
50 |
mA |
|
IGT |
|
IV |
|
50 |
100 |
mA |
|
VGT |
VD=12V RL=33Ω
|
Ⅰ-Ⅱ-Ⅲ |
MAX. |
1.3 |
V |
|
|
dV/dt |
VD=67%VDRM gate open Tj=125℃ |
MIN. |
200 |
400 |
V/us |
|
|
Symbol |
Test conditions |
Value |
Unit |
||
|
VT(2) |
ITM=22.5A, tp=380us |
Tj=25℃ |
MAX |
1.55 |
V |
|
IDRM |
VDRM=VRRM |
Tj=25℃ |
MAX |
5 |
uA |
|
IRRM |
Tj=125℃ |
2 |
mA |
||
ORDERING INFORMATION SCHEME:
A/B16 and T16系列型号含义见插入文件:/upfiles/2013/0123/file/20130123141731_30717.doc
