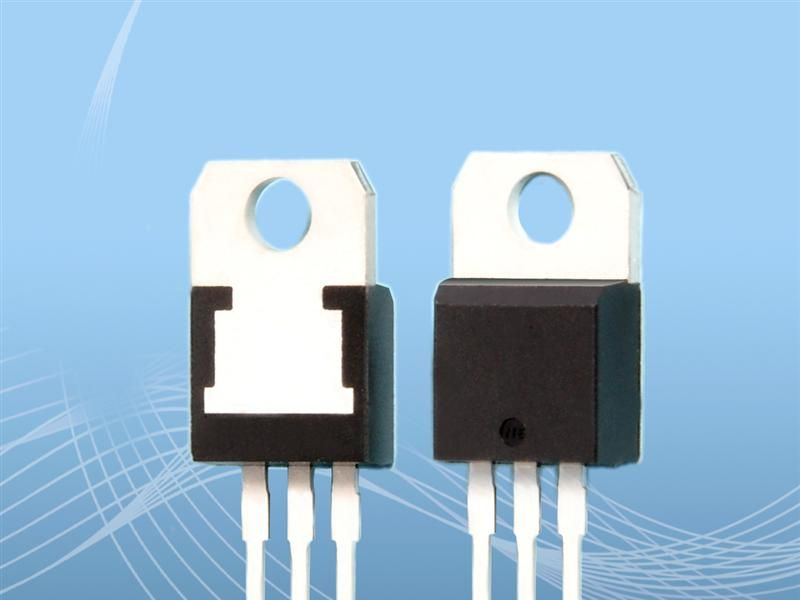

双向可控硅 20A TRIACs BTA20series BTA08-1000V
| 价 格： | 面议 | |
| 型号/规格： | 20A TRIACs BTA20series | |
| 品牌/商标： | SZGKT |
MAIN FEATURES:
|
Symbol |
Value |
Unit |
|
IT(RMS) |
20 |
A |
|
VDRM/VRRM |
600 and 700 |
V |
|
IGT(Q1) (max) |
35 and 50 |
mA |
DESCRIPTION:
The A20 H4/H3 triac family are high performance glass passivated chips technology.
The snubberless concept offer suppression of RC network and it is suitable for applic-
ation such as phase control and static switching on inductive or resistive load.
ABSOLUTE MAXIMUM RATINGS:
|
Symbol |
Parameter |
Value |
Unit |
||
|
IT(RMS) |
RMS on-state current (full sine wive) |
Tc=70℃ |
20 |
A |
|
|
ITSM |
Non repetitive surge peak on-state |
F=50Hz |
t=10ms |
210 |
A |
|
current(full cycle, Tj=25℃ ) |
F=60Hz |
t=8.3ms |
200 |
||
|
Tstg |
Storage junction temperature rage Operating junction temperature rage |
-40 to +150℃ |
|||
|
Tj |
-40 to +125℃ |
||||
|
Symbol |
Test conditions |
Quadrant |
|
A20 |
Unit |
||||||
|
B4 |
B3 |
||||||||||
|
IGT |
VD=12V RL=33Ω |
ALL |
MIN |
2 |
1 |
mA |
|||||
|
MAX |
50 |
35 |
|||||||||
|
VGT |
ALL |
MAX |
1.5 |
V |
|||||||
|
dV/dt |
VD=67%VDRM gate open Tj=125℃ |
TYP |
750 |
500 |
V/us
|
||||||
|
MIN |
500 |
250 |
|||||||||
|
Symbol |
Test conditions |
Value |
Unit |
||||||||
|
VT(2) |
ITM=28A, tp=380us |
Tj=25℃ |
MAX |
1.70 |
V |
||||||
|
IDRM |
VDRM=VRRM |
Tj=25℃ |
MAX |
10 |
uA |
||||||
|
IRRM |
Tj=125℃ |
3 |
mA |
||||||||
ORDERING INFORMATION SCHEME:
A20系列型号含义见插入文件：/upfiles/2012/1113/file/20121113034910_71806.doc
