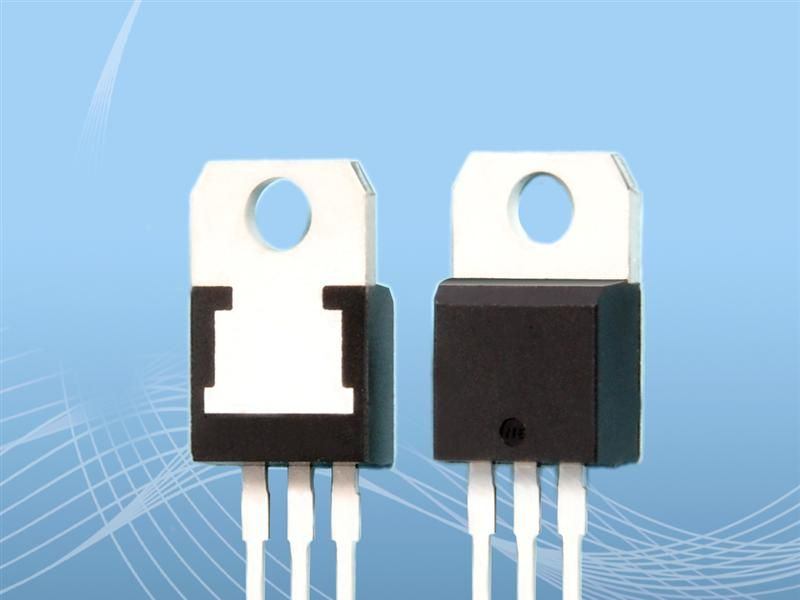

双向可控硅 30A TRIACs BTA30/BTB30 T30 series
| 价 格： | 面议 | |
| 型号/规格： | 30A TRIACs BTA30/BTB30 T30 series | |
| 品牌/商标： | SZGKT |
MAIN FEATURES:
|
Symbol |
Value |
Unit |
|
IT(RMS) |
30 |
A |
|
VDRM/VRRM |
600 and 800 |
V |
|
IG(Q1) |
35 to 50 |
mA |
DESCRIPTION:
Available either in through-hole or surface-mount packages, the A30, B30 and T30 triac
series is suitable for general purpose AC switching, They can be used as an ON/OFF function in applicationssuch as static relays, heating regulation, induction motor start-
ing circuits...or for phase control in light dimmers, motor speed controllers,...
The snubberless ang logic level versions(A/B...BX,T30 series) are specially recommended
for use on inductive loads,thanks for their high conmutation performances.By using an
internal ceramic pad, the A series provides voltage insulates tab(rated at 2500V RMS) co-
mplying with UL standards.
ABSOLUTE MAXIMUM RATINGS:
|
Symbol |
Parameter |
Value |
Unit |
||
|
IT(RMS) |
RMS on-state current (full sine wive) |
D2PAK/ TO-220AB |
Tc=100℃ |
30 |
A |
|
RD91/ TOP3 Ins. |
Tc=90℃ |
||||
|
TO-220AB Ins |
Tc=75℃ |
||||
|
ITSM |
Non repetitive surge peak on-state current(full cycle, Tj=25℃ ) |
F=50Hz |
t=20ms |
300 |
A |
|
F=60Hz |
t=16.7ms |
310 |
|||
|
Tstg |
Storage junction temperature rage Operating junction temperature rage |
-40 to +150℃ |
|||
|
Tj |
-40 to +125℃ |
||||
|
Symbol |
Test conditions |
Quadrant |
|
T30 |
A/B30 |
Unit |
|
|
T3035 |
B3 |
B4 |
|||||
|
IGT |
VD=12V RL=33Ω |
Ⅰ-Ⅱ-Ⅲ |
MAX |
35 |
35 |
50 |
mA |
|
VGT |
Ⅰ-Ⅱ-Ⅲ |
MAX |
1.3 |
V |
|||
|
dV/dt |
VD=67VDRM gate open |
Tj=125℃ |
MIN |
500 |
500 |
1000 |
V/us |
|
Symbol |
Test conditions |
Quadrant |
|
Value |
Unit |
|
IGT |
VD=12V RL=33Ω |
Ⅰ-Ⅱ-Ⅲ-Ⅳ |
MAX |
50 |
mA |
|
100 |
|||||
|
VGT |
ALL |
MAX |
1.3 |
V |
|
|
dV/dt |
VD=67%VDRM gate open Tj=125℃ |
MIN |
500 |
V/us |
|
|
Symbol |
Test conditions |
|
|
Value |
Unit |
|
VT(1) |
ITM=35A, tp=380us |
Tj=25℃ |
MAX |
1.55 |
V |
|
IDRM |
VDRM=VRRM |
Tj=25℃ |
MAX |
5 |
uA |
|
IRRM |
Tj=125℃ |
3 |
mA |
ORDERING INFORMATION SCHEME:
