双向可控硅BTA212
| 价 格： | 面议 | |
| 型号/规格： | BTA212 | |
| 品牌/商标： | SZGKT |
GENERAL DESCRIPTION

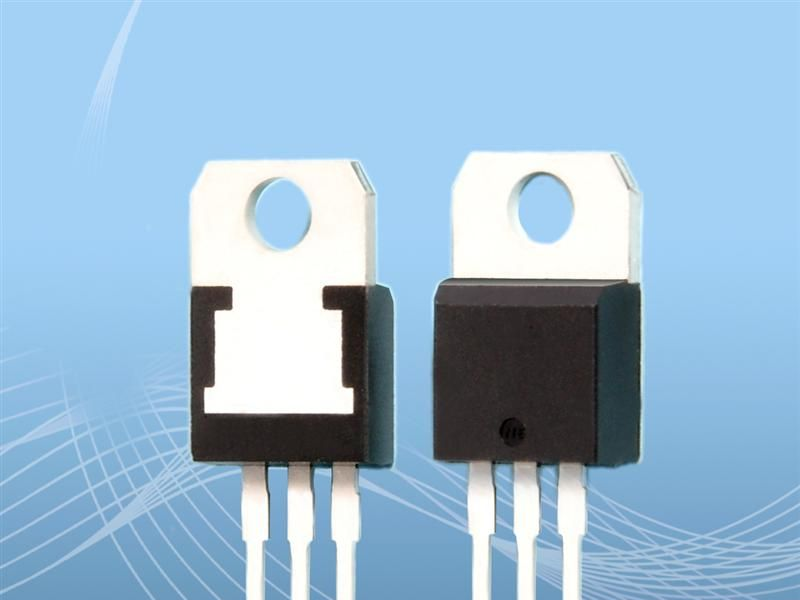

Glass passivated high commutation triacs in a plastic(TO-220AB) and a full pack(TO-220F)
envelope intended foruse in circuits wherehigh static and dynamic dV/dt and high dI/dt
can occur. These devices will commutate the full rated rms current at the maximum rated
junction temperature,without the aid of a snubber.
Features and benefits
* 3Q technology for improved noise immunity
* Direct interfacing with low power drivers and microcontrollers
* Good immunity to false turn-on by dV/dt
* High commutation capability with very sensitive gate
* High voltage capability
* Planar passivated for voltage ruggedness and reliability
* Triggering in three quadrants only
Applications
* Electronic thermostats
* General purpose motor controls
Quick reference data
* VDRM ≤ 500V / 600V / 800V
* ITSM ≤ 95A
* IT(RMS) ≤ 12A
* IGT ≤ 5mA(BTA212-800D)(BTA212B-800D)
* IGT ≤ 10mA(BTA212-800E)(BTA212B-800E)
* IGT ≤ 25mA(BTA212-800F)(BTA212B-800F)
* IGT ≤ 50mA(BTA212-800B)(BTA212X-800B)(BTA212B-800B)
* VT : 1.3-1.6V
* VGT : 0.7-1.5V
