双向可控硅 BTA202X
| 价 格： | 面议 | |
| 型号/规格： | BTA202X | |
| 品牌/商标： | SZGKT |
General description

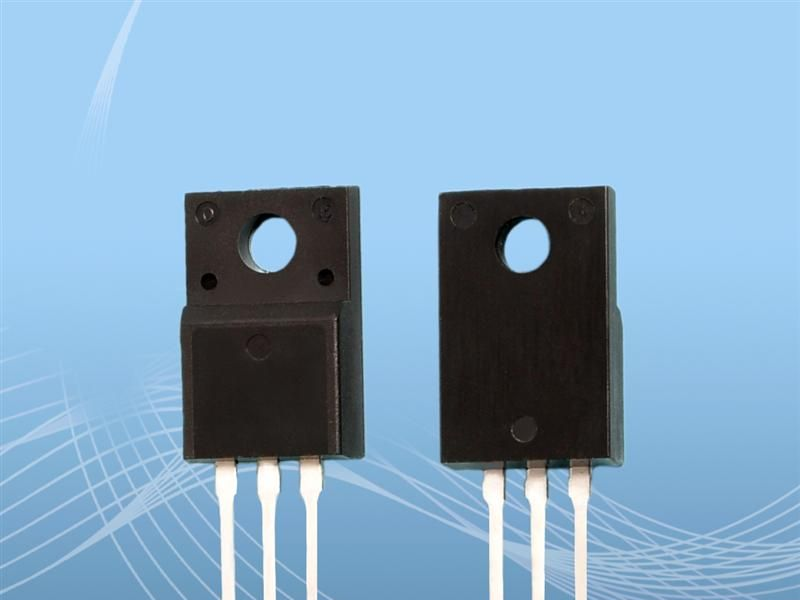

Planar passivated high commutation three quadrant triac in a SOT186A (TO-220F) "full
pack" plastic package. The "series D/E" triac balances the requirements of commutation
performance and gate sensitivity. This "very sensitive gate" "series D/E" is intended for
interfacing with low power drivers including microcontrollers.
Features and benefits
* 3Q technology for improved noise immunity
* Direct interfacing with low power drivers and microcontrollers
* Good immunity to false turn-on by dV/dt
* High commutation capability with very sensitive gate
* High voltage capability
* Isolated mounting base package
* Planar technology for voltage ruggedness and reliability
* Triggering in three quadrants only
* Very sensitive gate for easy logic level triggering
Applications
* General purpose motor controls
* Large and small appliances (White Goods)
* Loads such as contactors, circuit breakers, valves, dispensers and door locks
* Lower-power highly inductive, resistive and safety loads
Quick reference data
* VDRM ≤ 800V
* ITSM ≤ 14A
* IT(RMS) ≤ 2A
* IGT ≤ 5mA(BTA202X-800D)
* IGT ≤ 10mA(BTA202X-800E)
* VT : 1.63-2V
* VGT : 0.7-1.5V
