双向可控硅 BTA2008
| 价 格： | 面议 | |
| 型号/规格： | BTA2008 | |
| 品牌/商标： | SZGKT |
General description

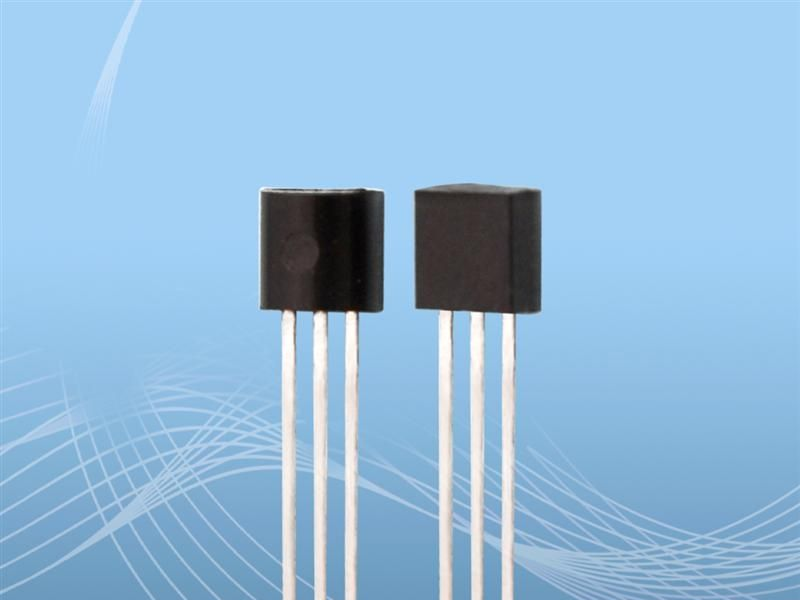

Planar passivated high commutation three quadrant triac in a SOT54 (TO-92) plastic
package and SOT223 surface mountable plastic package. This "series E" triac balances
the requirements of commutation performance and gate sensitivity and is intended for
interfacing with low power drivers and logic ICs including microcontrollers.
Features and benefits
* 3Q technology for improved noise immunity
* Direct gate triggering from low power drivers and logic ICs
* High commutation capability with very sensitive gate
* High voltage capability
* Planar passivated for voltage ruggedness and reliability
* Triggering in three quadrants only
* Very sensitive gate for easy logic level triggering
Applications
* Low power motor controls
* Small inductive loads e.g. solenoids, door locks, water valves
* Small loads in large white goods
Quick reference data
* VDRM ≤ 800V
* ITSM ≤ 9A
* IT(RMS) ≤ 0.8A
* IGT ≤ 5mA (BTA2008-800D)(BTA2008W-800D)
* IGT ≤ 10mA (BTA2008-800E)
* VT ≤ 1.35-1.6V
* VGT ≤ 0.9-2V
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 翁经理/许小姐/谢小姐
- 电话：0755-27578409/27578368
- 传真：0755-27578290
- 手机：15999672043/13823390688/15019404824
- QQ ：
双向可控硅 BTA201
信息内容：General description Planar passivated high commutation three quadrant triac in a SOT54 (TO-92) plastic package and SOT223 surface mounted plastic package.. This "series " triac balances the requirements of commutation performance and gate sensitivity and is intended for interfacing with low power drivers and logic ICs including microcontrollers. Features and benefits * 3Q technology for improved noise immunity * Direct triggering from low power drivers and logic ICs * High commutation capability with sensitive gate * High immunity to false turn-on by dV/dt * High voltage capability * Planar passivated for voltage ruggedness and reliability * Sensitive gate for easy logic level triggering * Triggering in three quadrants only Applications * General purpose motor control * Small loads in washing machines * Solenoid drivers Quick reference data * VDRM ≤ 800V * IT...
双向可控硅 BTA202X

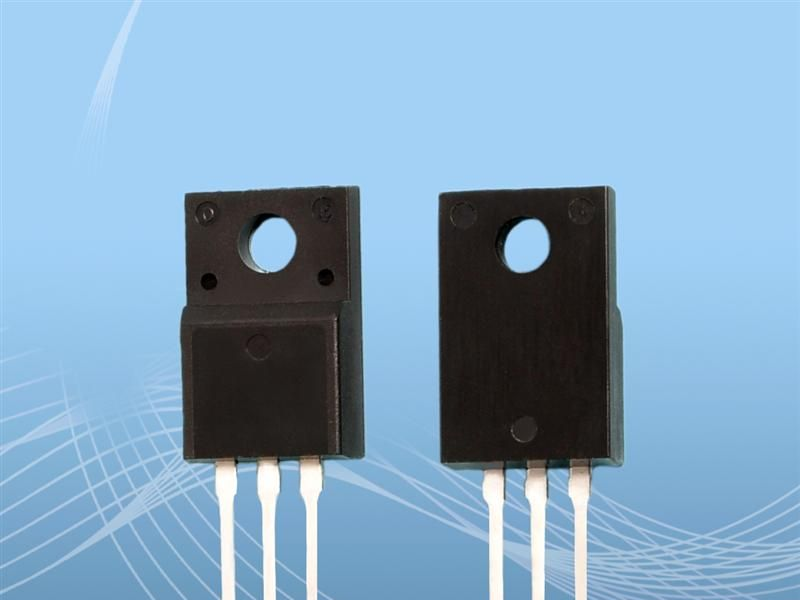

信息内容：General description Planar passivated high commutation three quadrant triac in a SOT186A (TO-220F) "full pack" plastic package. The "series D/E" triac balances the requirements of commutation performance and gate sensitivity. This "very sensitive gate" "series D/E" is intended for interfacing with low power drivers including microcontrollers. Features and benefits * 3Q technology for improved noise immunity * Direct interfacing with low power drivers and microcontrollers * Good immunity to false turn-on by dV/dt * High commutation capability with very sensitive gate * High voltage capability * Isolated mounting base package * Planar technology for voltage ruggedness and reliability * Triggering in three quadrants only * Very sensitive gate for easy logic level triggering Applications * General purpose motor controls * Large and small appliances (White Goods) * Loads such a...
