您所在的位置:仪器仪表网> 电子元器件>BZM-10 防爆照明开关

BZM-10 防爆照明开关

价 格: 面议
型号/规格:BZM-10 防爆照明开关
品牌/商标:

BZM-10 防爆照明开关   dzsc/19/3680/19368033.gif

                                                                                              dzsc/19/3680/19368033.jpg

BZM-10 防爆照明开关(ⅡB)
BZM-10 Explosion-Proof & Lighting Switch (ⅡB )

一、适用范围








1. 爆炸性气体环境危险场所:1区、2区;
2. 可燃性气体、蒸气级别:ⅡA、ⅡB;
3. 温度组别:T1~T5;
4. 户内、户外 (IP55)。

1. For the dangerous sites with explosive air mixture:
1 division、2 division;
2. Flammable gas, steam class:ⅡA、ⅡB;
3. Temperatures classification:T1~T5;
4. Indoor and outdoor(IP55).




二、型号含义

dzsc/19/3680/19368033.jpg

三、性能特点
1. 铸铝合金外壳,压铸成形,表面喷塑;
2. 外壳内装隔爆型开关,外壳接合部位有橡胶密
封圈密封,防护等级可达IP55;
3. 钢管或电缆布线。


1. Diecasted of Al-alloy shell with moulded-shapement and plastic-sprayed surface;
2. The increased safety is mounted the flame-proofing switch inside, the joint part of outer shell is sealed by rubber lock ring, The protective grade is up to IP55;
3. Steelpipe and cable wiring.




四、技术参数


额定电压
Rated voltage
(V)
额定电流
Rated current
(A)
防爆标志
Explosion-
proofing marker
防护等级
Protection
category
防腐等级
Corrosion-
proofing grade
进线口螺纹
Inlet's thread
电缆外径(mm)
Cable's outside
diameter
质量
Weigh
(kg)
220 10 ExedⅡBT5 IP55 WF1, WF2
G3/4 Φ10~Φ15
0.75

乐清市电器有限公司
公司信息未核实
  • 所属城市:浙江 温州
  • [联系时请说明来自维库仪器仪表网]
  • 联系人: 吴霜梅
  • 电话:0577-27776652
  • 传真:0577-27899977
  • 手机:13868790959
  • QQ :QQ:2355272466
公司相关产品

BAZ52防爆镇流器

信息内容:

BAZ52防爆镇流器 dzsc/19/3690/19369055.gif dzsc/19/3690/19369055.jpg BAZ52 Explosin-proof Ballast (ⅡC) BAZ52 防爆镇流器(ⅡC) 一、适用范围 1. 爆炸性气体环境危险场所:1区、2区; 2. 可燃性气体、蒸气级别:ⅡC; 3. 温度组别:T1~T4; 4. 户内、户外(IP54,可按用户要求达到IP65)。 1. For the dangerous sites with explosive air mixture: 1 division, 2 division; 2. Flammable gas, steam class: ⅡC; 3. Temperatures classif...

详细内容>>

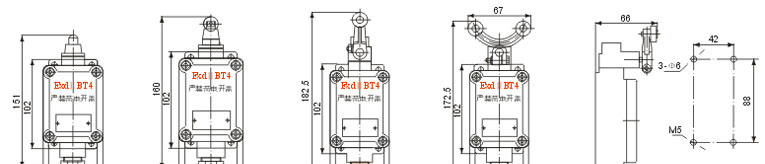

BZX51-6防爆行程开关
