BZX51-6防爆行程开关(ⅡB)
BZX51-6 Explosion-Proof, Travelling Switch (ⅡB)
|
|
一、适用范围
|
|
1. 爆炸性气体环境危险场所：1区、2区；
2. 可燃性气体、蒸气级别：ⅡA、ⅡB；
3. 温度组别：T1~T4；
4. 户内、户外（IP54）。
1. For the dangerous sites with explosive air mixture:
1 division、2 division;
2. Flammable gas, steam class：ⅡA、ⅡB;
3. Temperatures classification：T1~T4;
4. Indoor and outdoor(IP54).
|
|

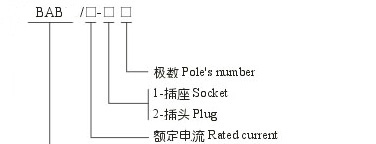

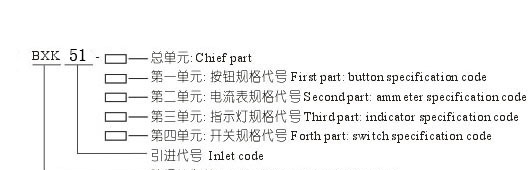

二、型号含义
|
|
|
dzsc/19/3690/19369058.jpg
|
1. Diecasted Al-alloy shell with plastic-sprayed surface;
2. Steelpipe and cable wiring.
1.铸铝合金外壳，表面喷塑；
2.钢管或电缆布线。
|
|
|
三、技术参数
|
|
型号
Model
|
动作行程或角度
Movement travel or angle
|
超行程
Over stroke
|
触头数量
Contact's number
|
额定电压
Rated voltage (V)
|
额定电流
Rated current (A)
|
|
BZX51-5Z
|
10~12mm
|
3~5mm
|
1NC+1NO
|
380
|
5
|
|
BZX51-5D
|
12°
|
3°
|
|
BZX51-5S
|
12°
|
3°
|
|
|
|
防护等级
Protection category
|
防爆标志
Explosion-proofing marker
|
防腐等级
Corrosion-proofing grade
|
进线口螺纹
Inlet's thread
|
电缆外径(mm)
Cable's outside diameter
|
|
IP54
|
Ex dⅡBT4
|
W, WF1, WF2
|
G3/4
|
Φ10~Φ15
|
|
|
|
|
