一、适用范围
|
|
1. 爆炸性气体环境危险场所：1区、2区；
2. 可燃性气体、蒸气级别：ⅡA、ⅡB；
3. 温度组别：T1~T4；
4. 户内、户外 (IP54)。
1. For the dangerous sites with explosive air
mixture: 1 division、2 division;
2. Flammable gas, steam class：ⅡA、ⅡB;
3. Temperatures classification：T1~T6;
4. Indoor and outdoor(IP54).
|
|

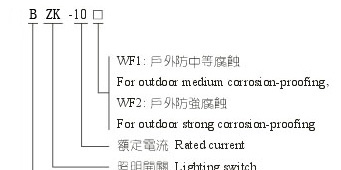

二、型号含义
|
|
|
dzsc/19/3679/19367970.jpg
|
|
|
|
|
三、性能特点
|
|
1. Diecasted Al-alloy shell with plastic-sprayed surface;
2. Inside mounted C45N、45AD、NM10、DZ20 series circuit breaker;
3. Possessing the guarding function against overload
andshort, etc;
4. Steelpipe and cable wiring.
1. 铸铝合金外壳，表面喷塑；
2. 内装C45N、C45AD、NM10、DZ20 系列断路器；
3. 具有过载、短路等保护功能；
4. 钢管或电缆布线。
|

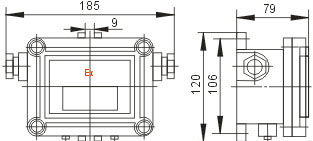

dzsc/19/3679/19367970.jpg
|
|
|
|
额定电压
Rated
voltage (V)
|
额定电流
Rated
current (A)
|
防爆标志
Explosion-
proofing marker
|
防护等级
Protection
category
|
防腐等级
Corrosion-
proofing grade
|
进线口螺纹
Inlet's
thread
|
电缆外径(mm)
Cable's outside
diameter
|
380/220
|
1, 3, 5, 10, 15, 20,
25, 32,
|
ExdeⅡBT4
ExdⅡBT4
|
IP54
|
W, WF1, WF2
|
G3/4
|
Φ10~Φ15
|
|
G1
|
Φ12~Φ18
|
|
|
|
|
|
dzsc/19/3679/19367970.jpg
|
|
|
|
|
|
额定电压
Rated
voltage (V)
|
额定电流
Rated
current (A)
|
防爆标志
Explosion-
proofing marker
|
防护等级
Protection
category
|
防腐等级
Corrosion-
proofing grade
|
进线口螺纹
Inlet's
thread
|
电缆外径(mm)
Cable's outside
diameter
|
380/220
|
1, 3, 5, 10, 15, 20,
25, 32, 40, 50, 63
|
ExdeⅡBT4
ExdⅡBT4
|
IP54
|
W, WF1, WF2
|
G3/4
|
Φ10~Φ15
|
|
G1
|
Φ12~Φ18
|
|
G11/4
|
Φ13~Φ23
|
|
G11/2
|
Φ17~Φ26
|
|
|
|
|
|
dzsc/19/3679/19367970.jpg
|
|
|
|
|
额定电压
Rated
voltage (V)
|
额定电流
Rated
current (A)
|
防爆标志
Explosion-
proofing marker
|
防护等级
Protection
category
|
防腐等级
Corrosion-
proofing grade
|
进线口螺纹
Inlet's
thread
|
电缆外径(mm)
Cable's outside
diameter
|
380/220
|
16, 20, 32, 40,
50, 63, 80, 100
|
ExdeⅡBT4
ExdⅡBT4
|
IP54
|
W, WF1, WF2
|
G1
|
Φ12~Φ18
|
|
G11/4
|
Φ15~Φ22
|
|
G11/2
|
Φ20~Φ26
|
|
G2
|
Φ27~Φ37
|
|
|
|
|
1. 铸铝合金外壳，表面喷塑；
2. 内装NM1、DZ20系列断路器；
3. 具有过载、短路等保护功能；
4. 钢管或电缆布线。
1. Diecasted Al-alloy shell with plastic-sprayed surface;
2. Inside mounted or NM1, DZ20 series breaker
3. Possessing the guarding function against overload and
short, etc;
4. Steelpipe and cable wiring.
|
|
|
|
|
dzsc/19/3679/19367970.jpg
|
|
|
|
|
额定电压
Rated
voltage (V)
|
额定电流
Rated
current (A)
|
防爆标志
Explosion-
proofing marker
|
防护等级
Protection
category
|
防腐等级
Corrosion-
proofing grade
|
进线口螺纹
Inlet's
thread
|
电缆外径(mm)
Cable's outside
diameter
|
380
|
100, 125, 160,
180, 200,
225, 250
|
ExdeⅡBT4
ExdⅡBT4
|
IP54
|
W, WF1, WF2
|
G2
|
Φ27~Φ37
|
|
G21/2
|
Φ36~Φ44
|
|
G3
|
Φ56
|
|
|
|
|
|
|
|
