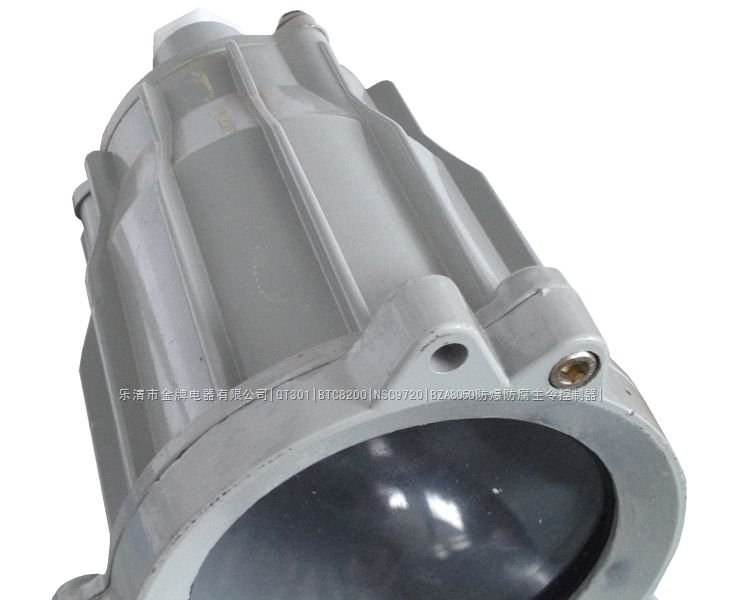

BAD51隔爆型防爆灯(ⅡB)
BAD51 Flame-proof Type, Explosion-proof Lamp (ⅡB)
一、使用范围
1. 爆炸性气体环境危险场所：1区、2区；
2. 可燃性气体、蒸气级别：ⅡA、ⅡB；
3. 温度组别：T1~T4；
4. 可配装白炽灯;
5. 户内、户外(IP54，可按用户要求达到IP65)。
1. For the dangerous sites with explosive air mixture: 1division, 2division;
2. Flammable gas, steam class: ⅡA、ⅡB;
3. Temperatures classification: T1~T4;
4. Suitable for incandescent lamp;
5. Indoor and outdoor (IP54, It could be designed as IP65 according to user's requirements).
二、型号含义
dzsc/19/3666/19366626.jpg
三、性能特点
1. 铸铝合金外壳，表面喷塑；
2. 压铸成形，结构紧凑，外形美观；
3. 壳上设有散热片，散热效果好；
4. 灯体采用螺纹紧固,性能稳定；
5. 钢管或电缆布线.
6. 符合GB3836-2000、IEC60079、GB12476.1-2000、 IEC61241标准要求。
1. Diecasted A1-alloy shell with plasic-sprayed surface;
2. Pressure-cast formation, compact structure and aesthetic appearance;
3. There is no radiating fin on the shell. It has good radiating result;
4. Screw thread is used in lamp body for fastening, so that work reliably.
5. Steelpipe and cable wiring.
6. Suitable for GB3836-2000、 IEC60079、GB12476.1-2000、IEC61241 standard request.
四、技术参数
|
