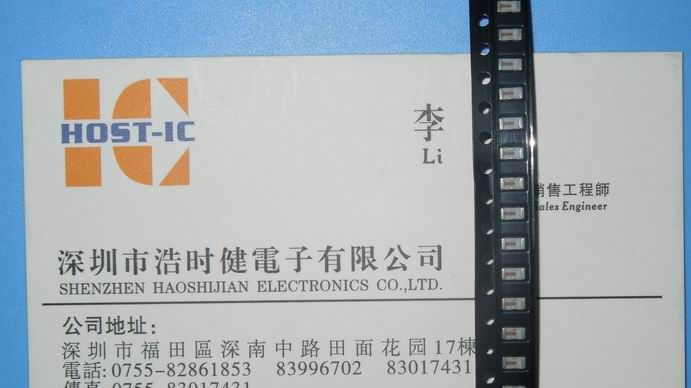

供应低通滤波器 LFCN-900+
| 价 格： | 面议 | |
| 型号/规格： | LFCN-900+ | |
| 品牌/商标： | Mini-Circuits |
LFCN-900+：Mini-Circuits 低通滤波器 Ceramic Low Pass Filter 50Ω DC(1) to 850 MHz
Maximum Ratings
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C
RF Power Input* 10W max. at 25°C
* Passband rating, derate linearly to 3.5-W at 100°C ambient.Permanent damage may occur if any of these limits are exceeded
Pin Connections
RF IN 1
RF OUT 3
GROUND 2,4
Features
• excellent power handling, 10W
• small size
• 7 sections
• temperature stable
• LTCC construction
• rejection in stopband, 45-50 dB typ.
• protected by U.S Patent 6,943,646
Applications
• harmonic rejection
• VHF/UHF transmitters/receivers
• lab use
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：

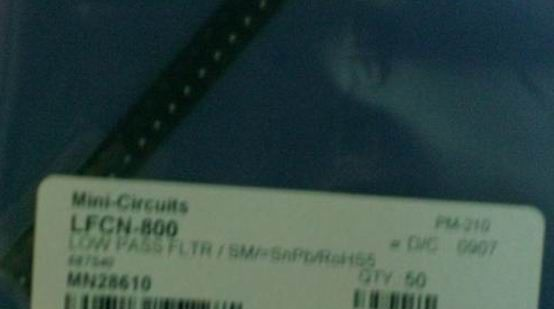

供应陶瓷低通滤波器 LFCN-800+
信息内容：LFCN-800+：Mini-Circuits低通滤波器 Ceramic Low Pass Filter 50Ω DC to 800MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power Input* 8.5W max. at 25°C Passband rating, derate linearly to 3.5W at 100°C ambient. Permanent damage may occur if any of these limits are exceeded Pin Connections RF IN 1 RF OUT 3 GROUND 2,4 Features • excellent power handling, 8.5W • small size • 7 sections • temperature stable • LTCC construction • protected by U.S. Patent 6,943,646 Applications • harmonic rejection • VHF/UHF transmitters/receivers
供应Mini-Circuits低通滤波器 LFCN-630+
信息内容：LFCN-630+：Mini-Circuits 陶瓷低通滤波器 Ceramic Low Pass Filter 50Ω DC(1) to 630 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power Input* 8.5W max. at 25°C * Passband rating, derate linearly to 3.5W at 100°C ambient.Permanent damage may occur if any of these limits are exceeded Pin Connections RF IN 1 RF OUT 3 GROUND 2,4 Features • excellent power handling, 8.5W • small size • 7 sections • temperature stable • LTCC construction • protected by U.S. Patent 6,943,646 Applications • harmonic rejection • VHF/UHF transmitters/receivers • RF suppression for DC lines on PCB • anti-aliasing for A/D converter
