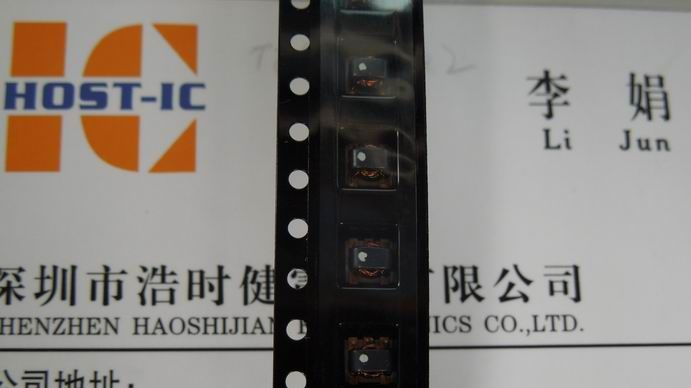

供应射频变压器 TCM4-1W+
| 价 格： | 面议 | |
| 型号/规格： | TCM4-1W+ | |
| 品牌/商标： | Mini-Circuits |
TCM4-1W+：Mini-Circuits 高频变压器 Surface Mount RF Transformer 50Ω 3 to 800 MHz
Maximum Ratings
Operating Temperature -20°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 0.25W
DC Current 30mA
Permanent damage may occur if any of these limits are exceeded
Pin Connections
PRIMARY DOT 6
PRIMARY 4
SECONDARY DOT 1
SECONDARY 3
SECONDARY CT 2
NOT USED 5
Features
• wide bandwidth. 3 to 800 MHz
• good return loss
• plastic base with solder plated leads
• aqueous washable
Applications
• CATV
• VHF/UHF
• balanced amplifier
• impedance matching
