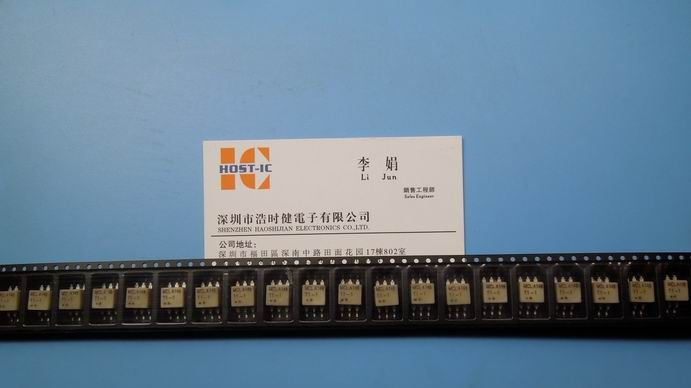

供应射频变压器 T4-1-KK81+
| 价 格： | 面议 | |
| 型号/规格： | T4-1-KK81+ | |
| 品牌/商标： | Mini-Circuits |
T4-1-KK81+：Mini-Circuits RF射频变压器 Surface Mount RF Transformer 50Ω 0.2 to 350 MHz
Maximum Ratings
Operating Temperature -20°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 0.25W
DC Current 30mA
Permanent damage may occur if any of these limits are exceeded
Pin Connections
PRIMARY DOT 4
PRIMARY 6
SECONDARY DOT 3
SECONDARY 1
SECONDARY CT 2
NOT USED 5
Features
• wideband, 0.2 to 350 MHz
• good return loss
• also available with flat-pack (W38), plug-in (X65) leads
Applications
• impedance matching
• receivers/transmitters
• balance antennas
