供应射频变压器 ADT1-1WT-1+
| 价 格： | 面议 | |
| 型号/规格： | ADT1-1WT-1+ | |
| 品牌/商标： | Mini-Circuits | |
| 包装方式： | 多件包装 | |
| 主要用途： | 精密电子仪器仪表 | |
| 适用电源类别： | 单相 | |
| 铁芯类型： | E型 | |
| 频率特征： | 工频 | |
| 导线类型： | 铜导线 |
ADT1-1WT-1+：Mini-Circuits 射频变压器 Surface Mount RF Transformer 75Ω 1 to 400 MHz
Maximum Ratings
Operating Temperature -20°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 250mW
DC Current 30mA
Permanent damage may occur if any of these limits are exceeded
Pin Connections
PRIMARY DOT 3
PRIMARY 1
SECONDARY DOT 4
SECONDARY 6
SECONDARY CT 5
NOT USED 2
Features
• 1dB bandwidth covers entire frequency range
• good return loss, 21 dB typ.
• leaded surface mount
• aqueous washable
• protected under US patent 6,133,525
Applications
• high speed data communications
• baluns
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：

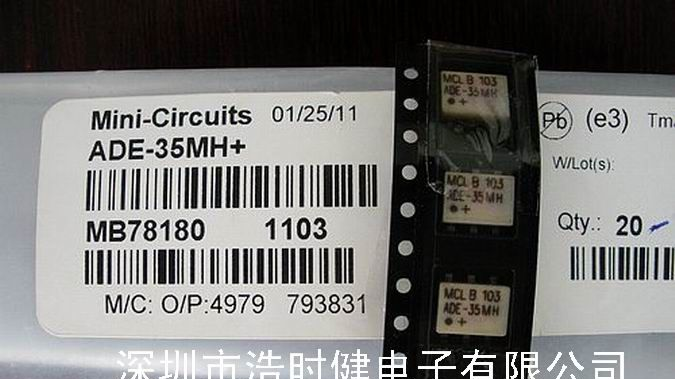

供应混频器 ADE-35MH+
信息内容：ADE-35MH+：Mini-Circuits 混频器 Surface Mount Frequency Mixer Level 13 (LO Power +13 dBm) 5 to 3500 MHz Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 200mW IF Current 40mA Permanent damage may occur if any of these limits are exceeded. Pin Connections LO 6 RF 3 IF 2 GROUND 1,4,5
供应射频变压器 TC4-1WG2
信息内容：TC4-1WG2+：Mini-Circuits RF射频变压器 Surface Mount RF Transformer 50Ω 3 to 800 MHz Maximum Ratings Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.25 W DC Current 30 mA Permanent damage may occur if any of these limits are exceeded Pin Connections PRIMARY DOT 6 PRIMARY 4 SECONDARY DOT 1 SECONDARY 3 SECONDARY CT 2 Features • suitable for tin/lead and RoHS solder systems • wideband, 3-800 MHz • good return loss • aqueous washable Applications • impedance matching • push-pull amplifiers
