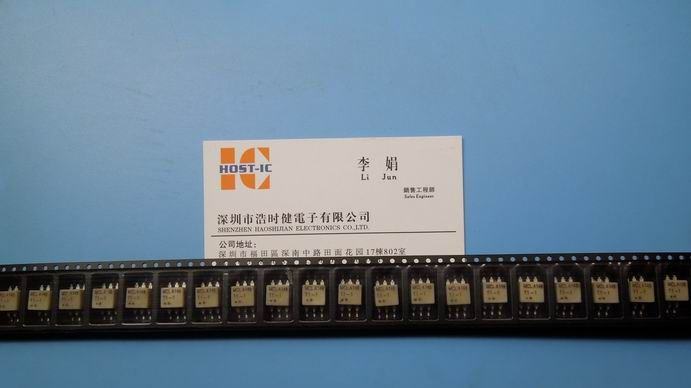

供应混频器 ADE-35MH+
| 价 格： | 面议 | |
| 型号/规格： | ADE-35MH+ | |
| 品牌/商标： | Mini-Circuits |
ADE-35MH+：Mini-Circuits 混频器 Surface Mount Frequency Mixer Level 13 (LO Power +13 dBm) 5 to 3500 MHz
Maximum Ratings
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 200mW
IF Current 40mA
Permanent damage may occur if any of these limits are exceeded.
Pin Connections
LO 6
RF 3
IF 2
GROUND 1,4,5
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：
供应射频变压器 TC4-1WG2
信息内容：TC4-1WG2+：Mini-Circuits RF射频变压器 Surface Mount RF Transformer 50Ω 3 to 800 MHz Maximum Ratings Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.25 W DC Current 30 mA Permanent damage may occur if any of these limits are exceeded Pin Connections PRIMARY DOT 6 PRIMARY 4 SECONDARY DOT 1 SECONDARY 3 SECONDARY CT 2 Features • suitable for tin/lead and RoHS solder systems • wideband, 3-800 MHz • good return loss • aqueous washable Applications • impedance matching • push-pull amplifiers
供应射频变压器 T4-6-KK81+
信息内容：T4-6-KK81+：Mini-Circuits 射频变压器 Surface Mount RF Transformer 50Ω 0.02 to 200 MHz Maximum Ratings Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 0.25W DC Current 30mA Permanent damage may occur if any of these limits are exceeded. Pin Connections PRIMARY DOT 4 PRIMARY 6 SECONDARY DOT 3 SECONDARY 1 SECONDARY CT — NOT USED 2,5 Features • wideband, 0.02 to 200 MHz • excellent return loss • also available with plug-in (X65) and flat-pack (W38) leads Applications • HF/VHF • impedance matching • receivers/transmitters
