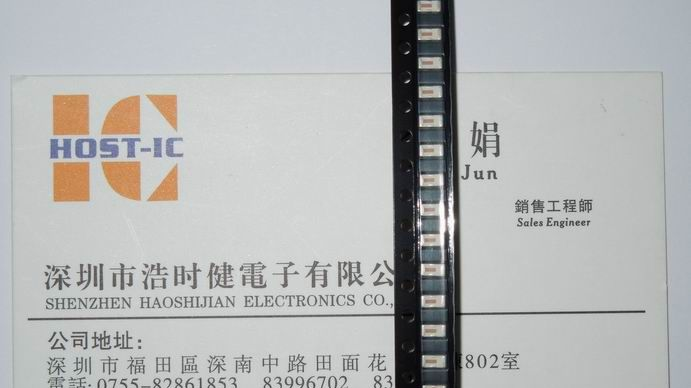

供应混频器 SYM-25DHW+
| 价 格： | 面议 | |
| 型号/规格： | SYM-25DHW+ | |
| 品牌/商标： | Mini-Circuits |
SYM-25DHW+：High IP3 Frequency Mixer Level 17 (LO Power +17 dBm) 80 to 2500 MHz
Maximum Ratings
Operating Temperature -40°C to 85°C
Storage Temperature -55°C to 100°C
RF Power 200mW
IF Current 40mA
Permanent damage may occur if any of these limits are exceeded
Pin Connections
LO 2
RF 1
IF 3
GROUND 4,5,6
Features
• wide bandwidth, 80 to 2500 MHz
• low conversion loss, 6.4 dB typ.
• high IP3, 30 dBm typ.
• good L-R isolation, 37 dB typ.; & L-I isolation, 36 dB typ.
Applications
• cellular
• PCN
• ISM/GPS
• satellite distibution
