KEYSTONE PC板焊接端子,PC板螺丝端子,黄铜端子,7807 7808
| 价 格： | 面议 | |
| 型号/规格： | 7807 | |
| 特性： | 重载型PC板焊接螺丝端子 | |
| 规格尺寸： | 11.94x11.94x17.02（mm） | |
| 品牌/商标： | Keystone Electronics | |
| 用途： | PC板连接 | |
| 材质： | 黄铜 | |
| 加工定制： | 是 |
dzsc/19/3361/19336165.jpg
dzsc/19/3361/19336165.jpg
PC Screw Terminals(PC板焊接螺丝端子)
PRINCIPAL FEATURES
• Low profile
• Stable, no-rock design with exclusive anti-rotational feature
• Easily mounts with four legs into pre-drilled or punched holes
• Accepts 14-22 AWG solid or stranded wire, crimp type terminals or lugs
• Ideally suited for high-density packaging
• Available in horizontal or vertical mounting
• Space-saving and time saving
• Easy accessibility for PC board testing
• Binding screw is positioned above board level to avoid wicking during wave soldering
• Terminals are made of Brass with Tin Plate
• Supplied with a combination drive 6-32 binding head screw
• Color coded screws available (add color screw suffix to Cat. No.)
A practical, low-cost alternative to PC screw type edge connectors, barrier blocks,terminal boards and terminal strips. Supplied unassembled or with screw installed and captivated.
PRINCIPAL FEATURES
• Compact, heavy duty design
• Six snap-in legs for total stability
• Serrated top surface secures connection
• Combination drive, binding head screw
• Color coded screws available (add color screw suffix to Cat. No.)
SPECIFICATIONS
Rated: 30 Amps
Terminal: 0.045 (1.14mm) thick Brass,Matte Tin Plate
Screw: M5x10mm,Brass,Tin Plate（7807不配螺丝,7808配送螺丝）
CAT. NO. 7807 (No Screw Supplied)
CAT. NO. 7808 (Screw Supplied Unassembled)
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 郝晨
- 电话：0755-27943982
- 传真：-
- 手机：18028740406
- QQ ：
CANWAY塑胶电池座|电池盒|大号电池座|碱性电池盒 Battery Holder

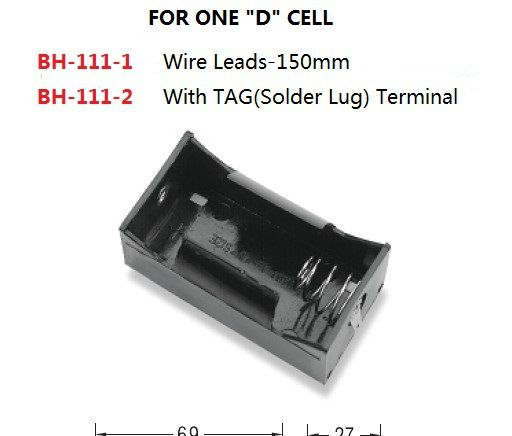

信息内容：dzsc/19/3370/19337002.jpgProduct Name:Single 'D' Cell Battery HolderP/N:BH-111-1 (Wire Leads-150mm) BH-111-2 (Solder Lug Terminals) BH-111-3 (PC Mount) Specification:Voltage Rating: 0 - 100VOperating Temperature: -10oC to 60oCTension Strength: 2.5kgf maxTorsional Strength: 0.7kgf/cm max Material:Body: Black PolyethyleneOther Colours & Materials Available on RequestTerminals: Ø.8mm 65C Spring WireLeads: #24AWG, 7 Strand, UL1007Leads Length: 150mm (standard)Stripped & Tinned ~3mmLeads Insulation: PVC 0.38mmConductor Resistance: 72.8 ohms/kft @ 20oCSafety: RoHS & Phthalate CompliantConnections: 150mm LeadsPCB PinSolder Lug Terminal"
