KEYSTONE PC板焊接端子,PC板螺丝端子,黄铜端子,7781 8190 7700
| 价 格： | 面议 | |
| 型号/规格： | 7781 | |
| 特性： | 水平型PC板焊接螺丝端子 | |
| 规格尺寸： | 8.3x11.5x13（mm） | |
| 品牌/商标： | Keystone Electronics | |
| 用途： | PC板连接 | |
| 材质： | 黄铜 | |
| 加工定制： | 是 |
dzsc/19/3392/19339296.jpg
dzsc/19/3392/19339296.jpg
PC Screw Terminals(PC板焊接螺丝端子)
PRINCIPAL FEATURES
• Low profile
• Stable, no-rock design with exclusive anti-rotational feature
• Easily mounts with four legs into pre-drilled or punched holes
• Accepts 14-22 AWG solid or stranded wire, crimp type terminals or lugs
• Ideally suited for high-density packaging
• Available in horizontal or vertical mounting
• Space-saving and time saving
• Easy accessibility for PC board testing
• Binding screw is positioned above board level to avoid wicking during wave soldering
• Terminals are made of Brass with Tin Plate
• Supplied with a combination drive 6-32 binding head screw
• Color coded screws available (add color screw suffix to Cat. No.)
A practical, low-cost alternative to PC screw type edge connectors, barrier blocks,terminal boards and terminal strips. Supplied unassembled or with screw installed and captivated.
PRINCIPAL FEATURES
• Compact, heavy duty design
• Six snap-in legs for total stability
• Serrated top surface secures connection
• Combination drive, binding head screw
• Color coded screws available (add color screw suffix to Cat. No.)
SPECIFICATIONS
Rated: 15 Amps
Terminal:0.032 (.81) thick Brass, Tin Plate
Binding Head Screw:Brass, Nickel Plate（7781不配螺丝,8190 7700配送螺丝）
CAT. NO. 7781 (No Screw Supplied)
CAT. NO. 8190 (Screw Supplied Unassembled)
CAT. NO. 7700 (Screw Installed & Captivated)
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 郝晨
- 电话：0755-27943982
- 传真：-
- 手机：18028740406
- QQ ：

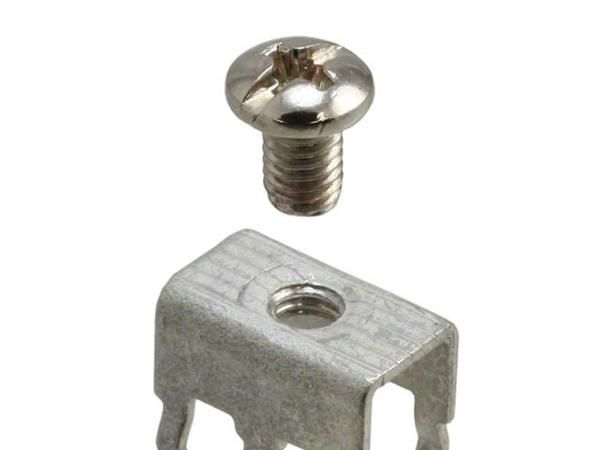

KEYSTONE PC板焊接端子,PC板螺丝端子,黄铜端子,7798 7799 7800
