Hirose/广濑 HRS连接器 MRF03-6PR-SMT(40) 同轴连接器
| 价 格： | 面议 | |
| 接口类型： | ------ | |
| 接触件材质： | ----- | |
| 针数： | ----- | |
| 种类： | 射频同轴(RF) | |
| 加工定制： | 否 | |
| 形状： | 圆形 | |
| 线长： | -----（mm） | |
| 应用范围： | 通讯 | |
| 型号： | MRF03-6PR-SMT(40) | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | ----- | |
| 品牌： | Hirose/广濑 | |
| 支持卡数： | 单卡 | |
| 芯数： | ----- | |
| 读卡类型： | CF | |
| 制作工艺： | 冷压 |
Hirose/广濑 HRS连接器 同轴连接器 连接器MRF03系列
薄型同轴多极连接器
| Features | |
| ● | Coaxial, multiple contact type. |
| ● | The PCB mounting height is 4mm. (4.3mm max.) |
| ● | The high frequency characteristics correspond to both 50 ohm and 75 ohm types when the appropriate cable is used. |
| Characteristic | Specifications |
| No. of Positions | 6 |
| PCB Mount Type | Through-hole |
| Contact Mating Area Plating | Gold |
| Impedance (ohm) | 50 |
| Frequency Range (GHz) | 0 to 1.7 |
| Operating Temperature Range (degrees C) | -30 to 80 |
| Termination Style | Soldering |
| Connector Type | Board mounting/Cable |
| Contact Gender | Female, Male |
| Mating/Unmating Cycles | 50 |
| VSWR (Max) | 1.3 |
同系列型号有：
MRF03-6P-0.8D(40)
MRF03-6P-0.8D-2(40)
MRF03-6PR-SMT(40)
MRF03-6R-SMT(40)
MRF03-6R-SMT-2(40)
HRS 连接器：
圆形连接器(Circular Connectors)、
矩形连接器(Rectangular Connectors)、
同轴连接器(Coaxial Connectors)、
存储卡(Memory Card)、
标准网口连接器(Modular Connectors)、
板对板连接器(Board to Board Connectors)、
板对线连接器(Board to Wire Connectors)、
FPC/FFC连接器(FPC/FFC Connectors)、
光纤连接器(Optical Connectors and Devices)、
射频连接器(Microwave Components)
SMK产品:手机连接器;视听数码产品连接器,电脑及设备连接器,家用电器连接器.
- 所属城市：上海 上海市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 徐清强
- 电话：021-54432312
- 传真：021-54432312
- 手机：
- QQ ：
Hirose/广濑 HRS 连接器 HRMM-101(40) 同轴连接器
信息内容：Hirose/广濑 HRS连接器 同轴连接器 连接器HRMM系列SSMA型螺钉联接型标准同轴连接器Features●SSMA connectors meeting MIL and IEC standards.●Stainless steel shell ensuring high durability.●Reduced in size to about 80% of HRM (SMA type) connectors.●V.S.W.R.: 1.2 max., from DC to 12.4GHz. Models using flexible cable: 1.2 max., from DC to 1GHz CharacteristicSpecificationsPCB Mount TypeThrough-holeGeneric NameSSMAContact Mating Area PlatingGoldImpedance (ohm)50Frequency Range (GHz)0 to 20Operating Temperature Range (degrees C)-55, -30 to 60, 85Applicable Cable0.085 inch semi rigid, 1.5D-2V, 1.5D-2V, 1.5D-HQEV, 1.5D-QEV, 1.5D-Q.SUPER, RG-196A/U, RG-405/U, 0.085 inch semi rigidTermination StyleSolderingConnector TypeAdapter/Board mounting/Cable/PanelContact GenderFemale, MaleMating/Unmating Cycles500, 1000RemarksExtraction tool, Conversion adaptor (BWA series)VSWR (Max)1.07, 1.1, 1.2, 1.3, 1.35 dzsc/19/2422/19242247.jpgdzsc/19/2422/19242247.jpgdzsc/19/2422/19242247.jpg同系列型号有：HRMM-101...
Hirose/广濑 HRS 连接器 HRM-557SV 同轴连接器

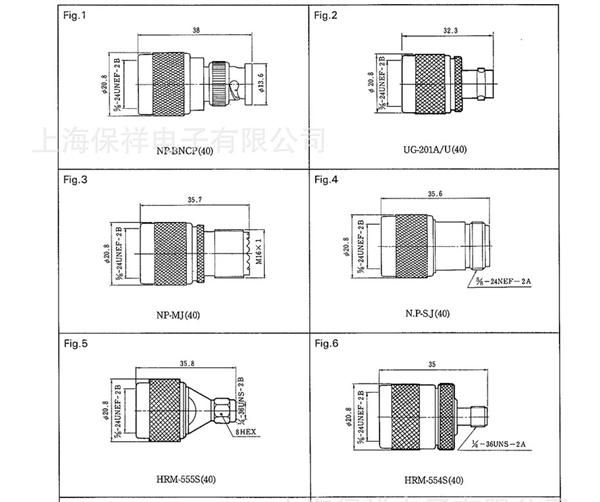

信息内容：Hirose/广濑 HRS连接器 同轴连接器 连接器BWA系列转换适配器Features●Conversion adapters used for connecting connectors of different type.●Mating portions compatible in materials and finish with the respective series.●Conforms in performance to the lower series of the two coaxial connectors to be connected. CharacteristicSpecificationsPCB Mount TypeThrough-holeContact Mating Area PlatingGold, SilverImpedance (ohm)50, 75Frequency Range (GHz)0 to 18Operating Temperature Range (degrees C)-55, -40, -30, -25, -10 to 60, 70, 85, 90, 125Connector TypeAdapterContact GenderFemale, MaleMating/Unmating Cycles50, 100, 200, 500, 1000, 3000, 5000, 10000VSWR (Max)1.05, 1.06, 1.08, 1.1, 1.2, 1.25, 1.3, 1.5 dzsc/19/2436/19243647.jpgdzsc/19/2436/19243647.jpg同系列型号有：
