无锡固电ISC 供应音响用大功率晶体管MJ15025(图)
| 价 格： | 12.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC/ISCSEMI | |
| 型号/规格： | MJ15025 | |
| 应用范围： | 放大 | |
| 材料： | 硅 | |
| 极性： | PNP型 | |
| 集电极允许电流ICM： | 16（A） | |
| 集电极耗散功率PCM： | 250（W） | |
| 结构： | 点接触型 | |
| 封装形式： | TO-3 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·Complement to Type MJ15022/15024
·Excellent Safe Operating Area
·High DC current Gain
: hFE= 5 (Min)@ IC= -8 A
APPLICATIONS
·Designed for high power audio, disk head positioners
and other linear applications
ABSOLUTE MAXIMUM RATINGS(TC=25℃)
SYMBOL | PARAMETER | VALUE | UNIT | |
VCBO | Collector-Base Voltage | MJ15023 | -350 | V |
MJ15025 | -400 | |||
VCEO | Collector-Emitter Voltage | MJ15023 | -200 | V |
MJ15025 | -250 | |||
VEBO | Emitter-Base Voltage | -5 | V | |
IC | Collector Current-Continuous | -16 | A | |
ICM | Collector Current-Peak | -30 | A | |
IB | Base Current-Continuous | -5 | A | |
PD | Total Power Dissipation @TC=25℃ | 250 | W | |
Tj | Junction Temperature | 150 | ℃ | |
Tstg | Storage Temperature | -65~200 | ℃ | |
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王燕
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：15961889150
- QQ ：

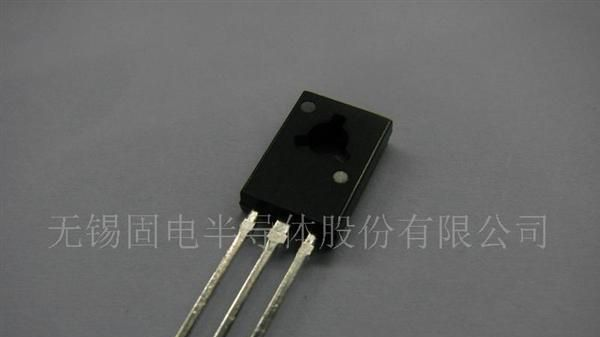

无锡固电ISC 供应晶体管,三极管,功率管BD441
信息内容：DESCRIPTION ·Collector-Emitter Sustaining Voltage - : VCEO(SUS)= 80V(Min)·Complement to type BD442 APPLICATIONS·Designed for medium power linear and switchingapplications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage 80VVCESCollector-Emitter Voltage 80VVCEOCollector-Emitter Voltage 80VVEBOEmitter-Base Voltage5VICCollector Current-Continuous4AICMCollector Current-Pulse7AIBBase Current-Continuous1APCCollector Power Dissipation@ TC=25℃36WTJJunctionTemperature150℃TstgStorageTemperature Range-65~150℃ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITVCEO(SUS)Collector-Emitter Sustaining VoltageIC= 100mA; IB= 080 VVCE(sat)Collector-Emitter Saturation VoltageIC= 2A; IB= 0.2A 0.8VVBE(on)-1Base-Emitter On VoltageIC= 10mA; VCE= 5V 0.58 VVBE(on)-2Base-Emitter On Voltag...

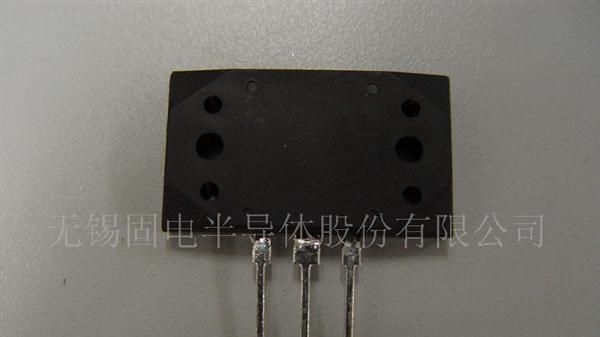

无锡固电ISC 供应2SA1108三极管
信息内容：DESCRIPTION ·Collector-Emitter Breakdown Voltage-V(BR)CEO= -130V(Min)·Good Linearity of hFE·High Power Dissipation APPLICATIONS·For audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage -130VVCEOCollector-Emitter Voltage -130VVEBOEmitter-Base Voltage-5VICCollector Current-Continuous-12APCCollector Power Dissipation@ TC=25℃120WTJJunctionTemperature150℃TstgStorageTemperature Range-55~150℃ ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITV(BR)CEOCollector-Emitter Breakdown VoltageIC= -25mA; IB= 0-130 VV(BR)EBOEmitter-BaseBreakdownVoltageIE= -1mA; IC= 0-5 VVCE(sat)Collector-Emitter Saturation VoltageIC= -5A; IB= -0.5A -2.0VVBE(on)Base-Emitter On VoltageIC= -5A; VCE= -5V -2.0VICBOCollector Cutoff CurrentVCB= -130V; IE= 0 -10μAIEBOEmitter Cutoff ...
