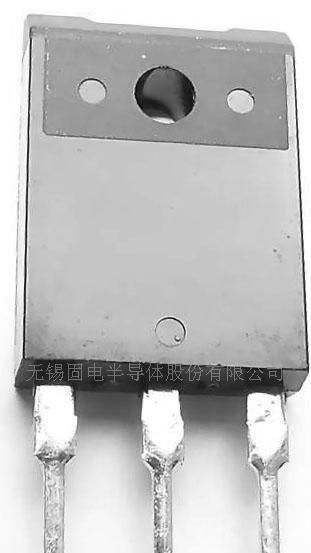

无锡固电ISC 供应晶体管,三极管,功率管BD441
| 价 格： | 1.80 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | BD441 | |
| 应用范围： | 功率 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 集电极允许电流ICM： | 4（A） | |
| 集电极耗散功率PCM： | 36（W） | |
| 截止频率fT： | 3（MHz） | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·Collector-Emitter Sustaining Voltage -
: VCEO(SUS)= 80V(Min)
·Complement to type BD442
APPLICATIONS
·Designed for medium power linear and switching
applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 80 | V |
VCES | Collector-Emitter Voltage | 80 | V |
VCEO | Collector-Emitter Voltage | 80 | V |
VEBO | Emitter-Base Voltage | 5 | V |
IC | Collector Current-Continuous | 4 | A |
ICM | Collector Current-Pulse | 7 | A |
IB | Base Current-Continuous | 1 | A |
PC | Collector Power Dissipation @ TC=25℃ | 36 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -65~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
VCEO(SUS) | Collector-Emitter Sustaining Voltage | IC= 100mA; IB= 0 | 80 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 2A; IB= 0.2A |
|
| 0.8 | V |
VBE(on)-1 | Base-Emitter On Voltage | IC= 10mA; VCE= 5V |
| 0.58 |
| V |
VBE(on)-2 | Base-Emitter On Voltage | IC= 2A; VCE= 1V |
|
| 1.5 | V |
ICBO | Collector Cutoff Current | VCB=80V; IE= 0 |
|
| 100 | μA |
ICEO | Collector Cutoff Current | VCE=80V; VBE= 0 |
|
| 100 | μA |
IEBO | Emitter Cutoff Current | VEB= 5V; IC= 0 |
|
| 1 | mA |
hFE-1 | DC Current Gain | IC= 10mA; VCE= 5V | 15 |
|
|
|
hFE-2 | DC Current Gain | IC= 0.5A; VCE= 1V | 40 |
|
|
|
hFE-3 | DC Current Gain | IC= 2A; VCE= 1V | 15 |
|
|
|
fT | Current-Gain—Bandwidth Product | IC= 0.25A; VCE= 1V | 3 |
|
| MHz |
