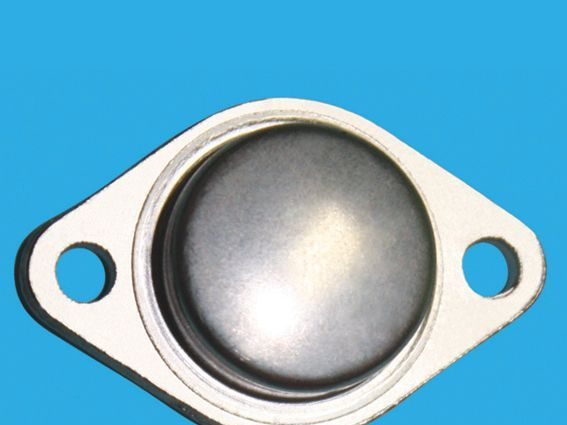

无锡固电ISC供应2SD113三极管
信息内容：DESCRIPTION ·Collector-Emitter Breakdown Voltage-: V(BR)CEO= 80V (Min)·High Power Dissipation·High Current Capability APPLICATIONS·Audio power amplifier, power switching applications.·DC-DC converter and regulator applications. Absolute maximum ratings(Ta=25℃)SYMBOLPARAMETERMAXUNITVCBOCollector-Base Voltage 100VVCEOCollector-Emitter Voltage 80VVEBOEmitter-Base Voltage10VICCollector Current-Continuous30AIEEmitter Current-Continuous-30AIBBase Current-Continuous5APCCollector Power Dissipation@TC=25℃200WTjJunction Temperature150℃TstgStorageTemperature Range-65~150℃ ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITV(BR)CEOCollector-Emitter Breakdown VoltageIC= 50mA; RBE=∞80 VV(BR)EBOEmitter-Base Breakdown VoltageIE= 50mA; IC= 010 VVCE(sat)Collector-Emitter Saturation VoltageIC= 15A; IB= 3A 1.5VVBE(sat)B...

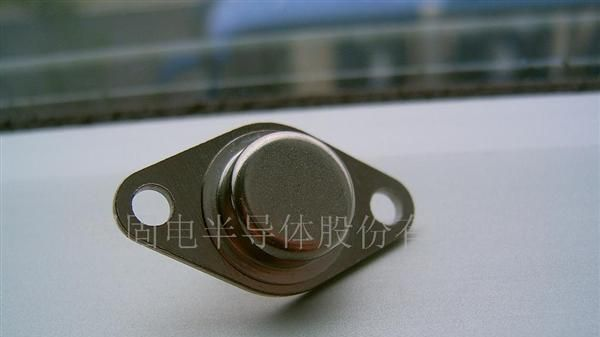

无锡固电ISC 供应三极管BU932R
信息内容：DESCRIPTION ·High Voltage·DARLINGTON APPLICATIONS·High ruggedness electronic ignitions·High voltage ignition coil driver Absolute maximum ratings (Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage500VVCEOCollector-Emitter Voltage450VVEBOEmitter-Base Voltage5VICCollector Current15AICMCollector Current-peak30AIBBase Current1AIBMBase Current-peak5APCCollector Power Dissipation@TC=25℃60WTjJunction Temperature150℃TstgStorageTemperature Range-40~150℃ THERMAL CHARACTERISTICSSYMBOLPARAMETERMAXUNITRth j-cThermal Resistance, Junction to Case2.08℃/W ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITVCEO(SUS)Collector-Emitter Sustaining VoltageIC= 0.1A; IB= 0; L= 10mH450 VVCE(sat)Collector-Emitter Saturation VoltageIC= 8 A; IB= 150mA 1.8VVBE(sat)Base-Emitter Saturation VoltageIC= 8 A; IB= 150mA 2.2VICESCollector Cutoff CurrentVCE= 500V;VBE= 0VCE= 500V;VBE= 0;Tj= 125℃ 1.05.0mAICEOCollector Cutof...
