您所在的位置:仪器仪表网> 电子元器件>JST连接器XMP-02V

JST连接器XMP-02V

价 格: 1.00
接口类型:AC/DC
接触件材质:磷青铜
针数:2
种类:胶壳(HOUSING)、胶壳(HOUSING)
加工定制:
形状:条形
线长:0(mm)
应用范围:汽车
型号:XMP-02V
工作频率:低频
特性:防潮
绝缘体材质:尼龙
品牌:JST/压着端子
Pitch:2.5mm
支持卡数:单卡
芯数:2
读卡类型:CF
制作工艺:冷压

XM connector (W to W)
dzsc/19/1133/19113347.jpg

dzsc/19/1133/19113347.jpg
 *The inner-housing lock secures the plug to the receptacle and prevents accidental disconnection.
*Secondary retainers provide added protection against non-insertion or disconnection.
*Housing lances
*Mountable on panels of various thickness without using tools.

Product Profile
SeriesXM connector (W to W)
CategoryWire to Wire Connectors
TypeCrimp style, With inner type secure locking device
FeatureWith secure locking device
Specification
Pitch2.5 mm
Current ratingMAX 3A
Voltage ratingMAX 250V


Compliant with RoHS.
(LF)(SN) as identification part number shall be displayed on a label.
When ordering RoHS compliant products, please inquire to the nearest
JST Sales Office, or order them with the described part number adding
(LF)(SN) as the identification marking after it.

dzsc/19/1133/19113347.jpgFurther Informationdzsc/19/1133/19113347.jpg3D Data
"

深圳市鼎腾发电子有限公司
公司信息未核实
  • 所属城市:广东 深圳
  • [联系时请说明来自维库仪器仪表网]
  • 联系人: 朱家玉
  • 电话:755-29611756
  • 传真:755-29611756
  • 手机:
  • QQ :
公司相关产品

JST连接器EHR-6

信息内容:

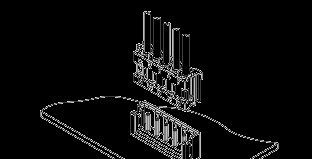

优势供应JST原厂连接器接插件:EHR-6。现货库存多,单价好优惠,交货周期快,有需要请与我联系EHコネクタ EHコネクタ製品情報シリーズEHカテゴリ基板対電線接続圧着コネクタタイプ嵌合圧着薄型 一般仕様ピッチ2.5 mm定格電流3A (AWG#22使用時)定格電圧250V実装方向トップ?サイド製品説明あらゆる電子機器の基板設計の自由度を高め、高密度実装のニーズに対応した超薄型設計のコネクタです。 dzsc/19/1137/19113767.jpgdzsc/19/1137/19113767.jpgEH connectordzsc/19/1137/19113767.jpgdzsc/19/1137/19113767.jpg It is designed to meet the demand for the high-density connection of internal wires to PC boards.Product ProfileSeriesEH connectorCategoryWire to Board Crimp style ConnectorsTypeDisconnectable typeCrimp style, Thin type SpecificationPitch2.5 mmCurrent rating3A (AWG#22)Voltage rating250VPC boardmounting directionTop entry, Side entryCompliant with RoHS.(LF)(SN) as identification part number shall be displayed on a label.When ordering RoHS compliant products, please inquire to the nearestJST Sales Office, or order...
