产品介绍Product Instruction

DALI (数字可寻址灯光接口)是国际标准的，流行的灯光控制协议总线，它采用曼彻斯特编码的数字式传输，具有整体、分组调光、寻址调光、查询灯具状态等强大的调光功能。该总线与模拟式的0-10V调光总线相比，具有调光，可寻址、稳定，可集中控制，安装方便等特点。DALI (Digital Addressable Lighting Interface) is an international standard,popular lighting control protocol,which adopt Manchester codes of digital transmission,with a whole grouping dimming,dimming
addressing inquiries,and other powerful state lighting dimming function.Compared with the 0-10v analogue dimming,it's more precise dimming,addressable,stable,focus control,easy installation and so on.

采用标准的DALI调光信号对LED进行数字式调光，采用标准为IEC60929。与传统的LED调光方式相比，具有可调光范围广，调光方式多样，调光精度高、可查询LED当前状态(如当前亮度、上电亮度、最小支持亮度、地址等)、易集散控制等特点。This product adopt a standard DALI dimming signal to digital LED dimming using standard IEC60929. LED dimming with the traditional way of comparison,with adjustable light a wide range of diverse dimming,dimming of high precision,check the current status LED(such as the current brightness,power intensity,the minimum support brightness, address,etc.),easy distributed control and so on.

功能特点Function Features:

1、采用标准DALI通用IE60929协议，能与市场上的DALI产品兼容，适合照明控制使用；Using standard IEC60299 agreement,can compatible with all dali products in the market,suitable for lighting control use;

2、调光方式多样，具有整体、分组调光、寻址调光、查询灯具状态等强大的调光功能，调光精度高。Dimming method variety,with whole and grouping dimming,addressing dimming, inquiry lamp status, and other powerful dimming function. Dimming precision high;

3、安装方便，控制器采用挂总线的方式，配合DALI编辑器的使用可方便编辑DALI调光器的地址。Easy installation, the controller adopt bus connection;

4、配合功率扩展器联机使用，可以无限的放大输出功率。Connecting with RGB amplifier, can infinitely enlarge the output power.

技术参数Technical Parameter

工作温度Workingtemperature : -20~60℃

供电电压Supplyvoltage：AC220V(50Hz/60Hz)

调光信号Dimmingsignal：DALI标准信号(IEC60929) According to DALIstandaed V0(IEC60929) signal

调光方式Dimming：后沿相控(trailing edge)

调光范围Dimmingrange：0.1%-100%

输出方式Output：1通道相位控制输出1 channel

输出电压OutputVoltage：与供电电压相同Sameas Supply Voltage

输出功率OutputPower：≤500W

负载Load：5-500W白炽灯Lamp

保护Protection：过流、短路保护Over current,Short Circuit Protection

重量(N.W/G.W)：70g /99g

外形尺寸External dimension：L149mm * W40mm* H28 mm

包装尺寸Packingsize：L150mm * W55mm * H50mm

连接方式Connectionmode：绿色接线端子: Greenwire connecting terminal

外形尺寸Dimensions：

dzsc/19/1101/19110191.jpg





接口说明Interface Description：

1).电源输入和输出接口Power Input&Output Interface：

dzsc/19/1101/19110191.jpg

2).DALI接口DALI Interface：

dzsc/19/1101/19110191.jpg


典型应用Typical Application

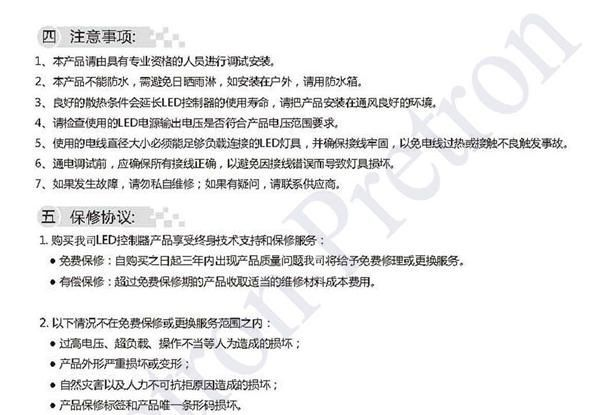

dzsc/19/1101/19110191.jpg
