DALI LED调光驱动器DALI LED Dimming Driver

LT-403 5A恒压LED调光驱动器CV Dimming Driver

输出功率Maxoutput power: 180W(12V) 360W(24V)

DALI协议（数字可寻址照明接口）是目前照明控制领域流行的新一代照明控制协议，它采用曼彻斯特编码格式传输，具有整体、分组调光、寻址调光、多种情景模式设置、亮度查询、故障反馈等强大的调光功能。现代酒店、商业中心、家庭对照明灯光系统要求越来越高，DALI协议总线控制其简单、可靠、功能优良等特点，被广泛使用，显示出在智能照明控制领域中的强大优势。DALI is the young generation lighting control protocol in the realm of lighting control at present, Which adopt Manchester encoding transmission, With overall, grouping dimming, addressing dimming, various scene mode set, brightness traced, breakdown feedbacked, etc. powerful dimming function. Modern top grade hotel, shopping mall, household increasingly request high standard to lighting system. DALI protocol bus-mastering with simple, reliable, superior function etc. features, are used widely, showing the powerful advantage in the realm of intelligent lighting control.

DALI总线协议以往是智能照明主控与调光电子镇流器配套使用，用于荧光灯的灯光情景调节，我公司推出的DALI 调光LED驱动器采用的DALI 标准IEC62386，可与任何符合DALI 协议的设备同接在一条总线控制，实现LED照明产品跟传统照明融合在同一套照明系统里面，大大方便用户的使用。DALI bus-mastering protocol is the intelligent lighting master match using with the dimmable ballast before , used to adjust the lighting scenarios of the fluorescent. DALI LED dimming driver launched by our company adopt the newest DALI standard IEC62386, can connect any equipment that accord with DALI protocol to 1 DALI bus-mastering ,which realize the LED lighting products and traditional lighting integrated in the same lighting system , greatly facilitate the users.

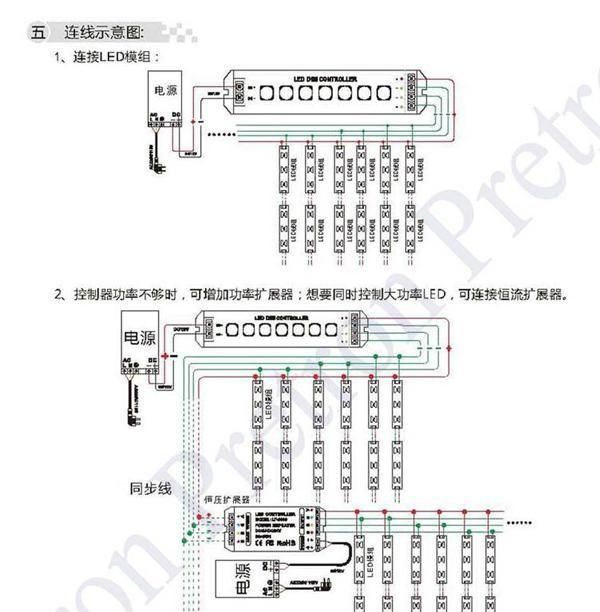

注：DALI调光驱动器功率不够用时，可增加功率扩展器，实现功率的无限放大。DALI调光驱动器信号输入与输出具有光电隔离5KV的安全保护功能。NOTE：Power repeater can be added to expand power output unlimitely when the power of DALI dimming driver is not enough. Signal input and output of Dali dimming driver have security protection function with photoelectricity isolation 5KV.

dzsc/19/1101/19110193.jpg


产品参数Product parameter

DALI LED调光驱动器DALI LED Dimming Driver

输入信号Input signal: DALI调光信号DALI digital dimming signal

输入电压Input voltage: DC12V～DC24V

负载电流Max load current: 5A*3CH  Max 15A

输出功率Max output power:180W(12V) 360W(24V)

调光范围Range: 0～100%

工作温度working temperature: -30℃～55℃

产品尺寸Dimension: L121*W39*H39(mm)

包装尺寸Package Size: L123*W42*H42(mm)

重量(毛重) Weight (G.W):90g

dzsc/19/1101/19110193.jpg

dzsc/19/1101/19110193.jpg

dzsc/19/1101/19110193.jpg

dzsc/19/1101/19110193.jpg

dzsc/19/1101/19110193.jpg

dzsc/19/1101/19110193.jpg

dzsc/19/1101/19110193.jpg

dzsc/19/1101/19110193.jpg
