产品介绍Product Instruction

DALI (数字可寻址灯光接口)是国际标准的，流行的灯光控制协议总线，它采用曼彻斯特编码的数字式传输，具有整体、分组调光、寻址调光、查询灯具状态等强大的调光功能。该总线与模拟式的0-10V调光总线相比，具有调光，可寻址、稳定，可集中控制，安装方便等特点。DALI (Digital Addressable Lighting Interface) is an international standard,popular lighting control protocol,which adopt Manchester codes of digital transmission,with a whole grouping dimming,dimming
addressing inquiries,and other powerful state lighting dimming function.Compared with the 0-10v analogue dimming,it's more precise dimming,addressable,stable,focus control,easy installation and so on.

DALI低压RGB调光器    采用标准的DALI调光信号对LED进行数字式调光，采用标准为IEC60929。与传统的LED调光方式相比，具有可调光范围广，调光方式多样，调光精度高、可查询LED当前状态(如当前亮度、上电亮度、最小支持亮度、地址等)、易集散控制等特点。This product adopt a standard DALI dimming signal to digital LED dimming using standard IEC60929. LED dimming with the traditional way of comparison,with adjustable light a wide range of diverse dimming,dimming of high precision,check the current status LED(such as the current brightness,power intensity,the minimum support brightness, address,etc.),easy distributed control and so on.

功能特点Function Features:

1、采用标准DALI通用IE60929协议，能与市场上的DALI产品兼容，适合照明控制使用；Using standard IEC60299 agreement,can compatible with all dali products in the market,suitable for lighting control use;

2、调光方式多样，具有整体、分组调光、寻址调光、查询灯具状态等强大的调光功能，调光精度高。Dimming method variety,with whole and grouping dimming,addressing dimming, inquiry lamp status, and other powerful dimming function. Dimming precision high;

3、安装方便，控制器采用挂总线的方式，配合DALI编辑器的使用可方便编辑DALI调光器的地址。Easy installation, the controller adopt bus connection;

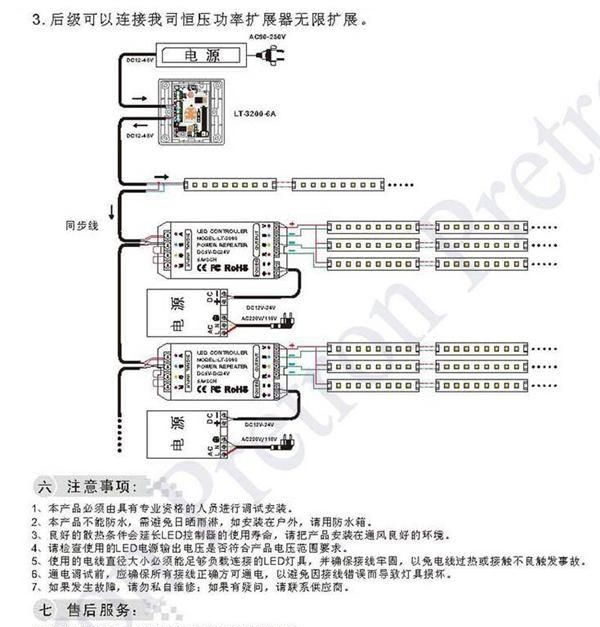

4、配合功率扩展器联机使用，可以无限的放大输出功率。Connecting with RGB amplifier, can infinitely enlarge the output power.

技术参数Technical Parameter

工作温度Workingtemperature: -20~60℃

供电电压Supplyvoltage: DC12V/24V

调光信号Dimming signal：标准IEC60929 DALI信号standard IEC60929 DALI signal

DALI地址DALI address：占用三个通道occupy 3 channel

输出Output：三通道，电压和供电电压相同3 channel (the samevoltage and supply voltage)

调光范围Dimmingrange：0.1%-100%

重量(N.W/G.W)：70g /95g

外形尺寸External dimension：L122.3mm*W78.1967.9mm*H31.78mm

包装尺寸Packingsize：L145Χ W95 Χ H50 mm

连接方式Connectionmode：弹簧式免螺丝接线方式，接线端子口径2.6mm Spring-free screw-type wring ,terminal block2.6mm diameter

输出电流Outputcurrent：<4A

输出功率Outputpower：12V:<144W,24V:<288W

外形尺寸Dimensions：

dzsc/19/1101/19110186.jpg

接口说明Interface Description：

1).电源输入和DALI信号接口Power supply & DALI Signal Interface：

dzsc/19/1101/19110186.jpg

2).负载输出接口Load Output Interface：

dzsc/19/1101/19110186.jpg

典型应用Typical Application

dzsc/19/1101/19110186.jpg
